Ports and Data Flow

🔗

GCS · FlowGraph Authoring

Ports carry two things: execution order and values. This page covers the value side, from target sources and collections to action results, variables, and when a value is actually read.

Read this once your graphs stop being straight lines. You do not need C# types; gameplay terms are enough.

Every wire in a graph is either a control wire or a data wire. Control was covered in the editor workflow; this page is about the data side. Think in gameplay terms: unit, card, status, number, yes/no, text, collection.

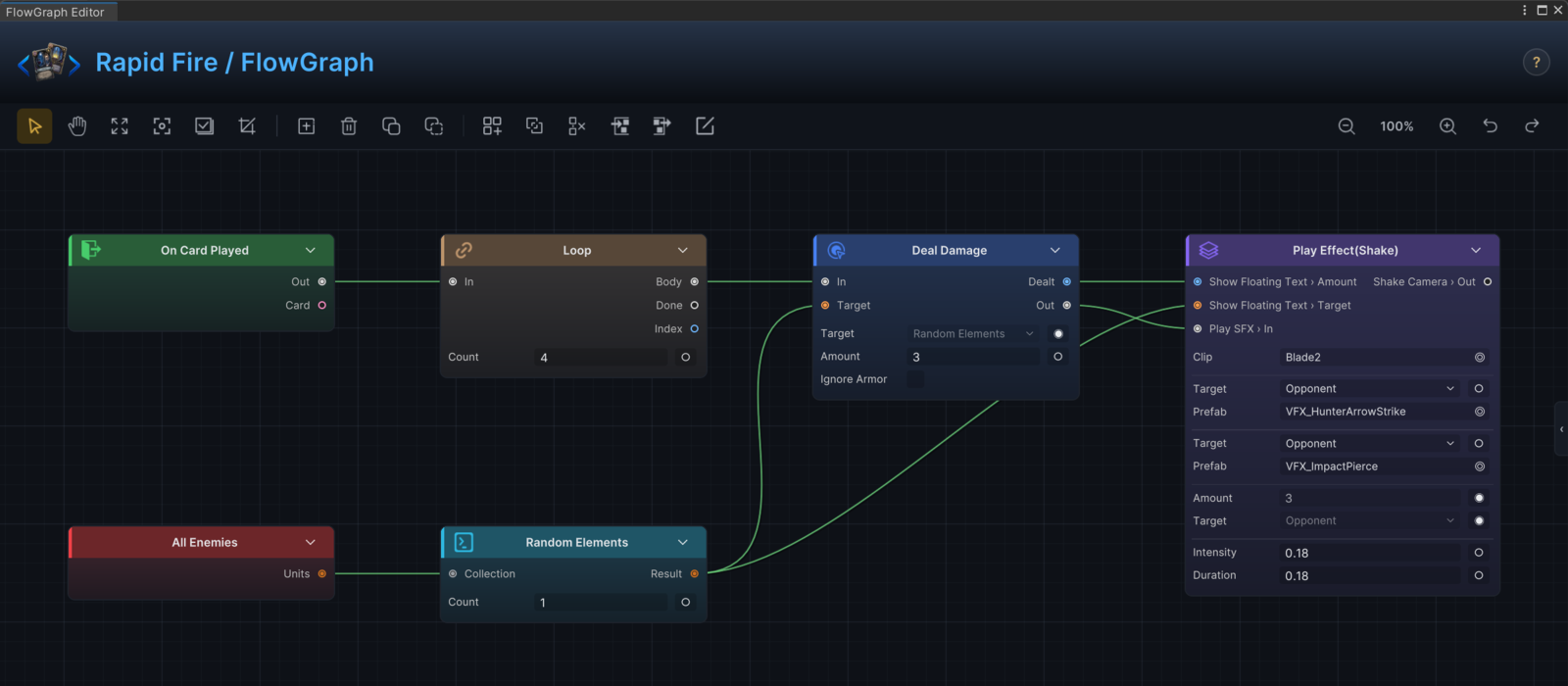

Rapid Fire is a compact data-flow example: All Enemies produces a unit collection, Random Elements narrows it to one unit, and that unit flows into Deal Damage.Target on every loop iteration. Each hit can land on a different enemy because the target is re-pulled per iteration.

---

Control ports

Control ports decide what runs next.

Port shape	Meaning
Single output	Continue to the next node.
True / False	Branch on a yes/no condition.
Body / Done	Run the body per iteration, then continue when the loop finishes. Loop and Foreach also expose an Index data output.
OnChosen / Skipped	Continue after a player choice, or after the player declines.
Numbered or named outputs	One path per case in a Switch, Sequence, or Intent pattern.

Every graph needs at least one starting point: an entry, a hook, or an Intent pattern. A cluster of data nodes with no control path never runs.

---

Data ports

Value kind	Typical sources	Typical consumers
Unit	Self Unit, Opponent Unit, entry Source / Target, Pick Element	Deal Damage, Change HP, Unit Info, Flash Unit
Unit collection	All Enemies, All Units, Filter, Random Elements	Deal Damage, Foreach, Count
Card	This Card, card entries, Pick Element	Card Info, Play Card, Transform Card
Card collection	Card Piles, Deck Cards, Filter, Take	Move Cards, Upgrade Cards, Remove Cards
Status	Status entries, Unit Info.Statuses plus Pick Element	Reapply Status, Remove Statuses
Number	Entry Amount, Player Energy, Unit Info, math nodes	Action amounts, Loop.Count, conditions, Write Hook
Yes/no	Condition, Logic, Is Empty, hook Playable	Branch, While, Gate.Allow, Write Hook
Text	Card Info.Type, Unit Info.Team, Constant, Event Arg	Condition comparisons, Switch cases, filters

Wires are type-checked: a number output fits a number input, a whole number fits a decimal slot, and a single unit fits a port that accepts "unit or units". Wiring a collection into a single-target port also works but quietly uses the first entry; when that is what you mean, say it with Pick Element so the graph reads honestly.

Rapid Fire's wiring exercises several of these rows at once: All Enemies feeds Random Elements, the picked unit drives Deal Damage.Target, and the Dealt result carries on into the presentation group.

---

Field value versus connected value

Many nodes carry an editable field that can also become an input port. The port is hidden until you ask for it: click the ○ socket button at the end of the field's row to expose it, and ◉ to fold it back into an inline value (the editor workflow shows the gesture). The rule at runtime is simple: a connected port wins, and the field is the fallback when nothing is connected.

Situation	Better choice
The card always deals 8 damage.	Set Amount = 8 on Deal Damage.
Damage equals current armor.	Wire Unit Info.Armor into Deal Damage.Amount.
The status always applies 2 stacks.	Set Amount = 2 on Change Status.
Stacks scale with cards played this turn.	Wire Count into Change Status.Amount.

Why the field still matters when a wire is connected

Node inputs resolve through a "pull input, or fall back to the field" rule. When you later delete the wire, or fold the port back to an inline value, the node silently reverts to its field value instead of breaking. Keep the field set to something sensible even on wired nodes; it documents the intended baseline and keeps the graph functional through rewiring.

---

When values are read

Data wires do not push values around. A value is computed at the moment the consuming node runs and asks for it:

Three consequences you will actually feel while authoring:

• Get nodes read the live battle state at the moment they are pulled. A Unit Info.HP read after a Deal Damage sees the reduced HP, not the value from when the graph started.
• Within a single node's run, repeated pulls from the same Get node agree with each other. Random follows the same rule: one action pulling a Random twice sees one roll, but the next node in the control path pulls a fresh roll. Two actions wired to the same Random will roll twice.
• To lock one computed value and reuse it across several nodes, store it with Set Variable, or wire the first action's result output onward instead of re-reading the source.

Operator nodes (Math Binary, Condition, Filter, ...) are pure calculations over their inputs; they recompute every time something pulls them.

---

Target sources

Action nodes that touch units or cards carry a source field that answers: which things should this node use when no data wire overrides it?

Source field	Options	Meaning
TargetSource (units)	Self, Opponent, AllEnemies, AllUnits	Find units by their relationship to the graph's owner.
CardsSource (cards)	ThisCard, HandPile, DrawPile, DiscardPile, ExhaustPile, AllPiles	Read the current card or a known pile.
Pile (pile scope)	Hand, Draw, Discard, Exhaust, Master, All	Where a card action places, moves, or inspects cards.

These enum fields cover the common cases without any wiring: TargetSource = AllEnemies is a complete AoE target. Reach for selector nodes when the source needs filtering, sorting, or randomness. All Enemies -> Filter -> Random Elements reads as "a random matching enemy", which no single field could express.

---

Collections

A collection is a list of units, cards, or statuses, and collection nodes build the target set before an action runs.

Need	Node
Every enemy	All Enemies
Every unit	All Units
Cards from a pile	Card Piles
Cards from the run deck	Deck Cards
Keep only matching entries	Filter
Count entries	Count
Check for emptiness or membership	Is Empty, Contains
Pick one entry	Pick Element
Pick several at random	Random Elements
Combine or subtract lists	Merge Collections, Exclude
Reorder or trim	Sort, Shuffle, Take

An action that accepts a unit collection applies to every unit in it. When each target needs its own follow-up logic or its own presentation beat, run the collection through Foreach instead of passing it whole.

---

Action results

Several actions output what they actually did, which can differ from what you asked for once armor, hooks, and caps have their say.

Node	Output	Why it matters
Deal Damage	Dealt	Damage after armor, hooks, and prevention.
Change HP	Changed	HP actually changed, after clamping at max or zero.
Change Armor	Changed	Armor actually changed.
Change Energy	Changed	Energy actually changed.
Change Status	Changed	The real stack delta.
Draw Cards	Drawn	The cards that arrived in hand.
Add Cards	Added	The card instances that were created.
Spawn Unit	Spawned	The new unit, if one was created.

Player-facing feedback should almost always use these outputs. Floating text wired to Dealt shows the 4 that got through the armor, not the 7 the card intended.

---

Variables

Set Variable stores a named value; Variable reads it back. The node's BattleScope toggle decides the lifetime: off means the value lives for the current run of the graph, on means it persists for the whole battle and any graph can read it.

Scope	Use for	Avoid for
Graph run (default)	Intermediate values reused within one execution.	Anything a direct wire can carry.
Battle scope	Counters and flags that persist across turns and entries.	Temporary calculations.

Name variables by gameplay meaning: BonusDamage, CardsCreated, MarkedTarget. A battle-scope variable named Temp will hurt exactly when you least expect it.

---

Event arguments

Raise Internal Event sends named arguments; the receiving graph reads each one with an Event Arg node after On Internal Event.

Sender binds	Receiver reads with
The attacking unit	Event Arg with the matching argument name
A damage amount	Event Arg, then math or branch nodes
A created card	Event Arg, then card nodes

Keep argument names stable and specific. Attacker and DamageAmount survive refactors; A and Payload do not.

---

Custom node ports

Custom nodes get ports without referencing any editor code. The short version:

You write	Users see
A public int / float / bool / string field	A field with the ○ socket toggle, ready to expose as an input port of the same name.
A UnitSource or CardSource field named <Name>Source	A target field whose port is called <Name>: TargetSource backs a Target port.
INodePorts.DeclarePorts()	Explicit named inputs, outputs, control branches, and dropdown ports. On a name clash, the declared port wins over the auto-promoted one.
[FlowNode(category, displayName)]	The menu group and node title in Add Node.

Name ports after the gameplay choice (Target, Amount, Duration), not the implementation. The full authoring contract lives in custom nodes and custom ports.

---

Troubleshooting data flow

Symptom	Likely cause	Check
The node runs but nothing changes.	Empty or wrong target.	The source field, the selector output, or the entry outputs.
A branch always takes one side.	The condition input is unwired.	Branch.Condition and the Condition node's inputs.
Floating text shows the wrong number.	It shows the intended amount, not the result.	Wire the action's Dealt or Changed output instead.
Two actions fed by one Random show different numbers.	Each action re-rolls when it pulls.	Store the roll with Set Variable, or reuse the first action's result output.
A collection action hits too many targets.	The selector is too broad.	Add Filter, Take, or Pick Element.
A hook never changes the value.	Write Hook missing or wrong kind.	Kind = Int for numeric hooks, Kind = Bool for playability.
