Runtime Architecture

⚡

GCS · Runtime

How the GCS runtime is layered: manager, state machine, state view, controller, flow execution, events, and presentation.

Read this before writing custom battle UI or gameplay code, so your code mutates state through the right surface instead of editing internal lists.

The GCS runtime turns authored content into a live battle. The boundary worth memorizing is short: content assets describe what can happen, battle state stores what is happening right now, and the controller is the only safe way to change that state.

Runtime layers

Layer	Main types	Responsibility	Rule for your code
Manager	GameCardManager, GCSApi	Holds the active databases, the active battle, the run master deck, and the public entry point.	External code starts with GCSApi.
State machine	BattleStateMachine	Owns battle phases, turn transitions, choice waits, reward waits, and enemy turns.	Never force phase changes. Call StartBattle, TryPlayCard, EndPlayerTurn.
State view	IBattleState, BattleStateView	Exposes turn, energy, units, piles, played/drawn history, and effective card costs.	Read through GCSApi.Battle or the GCSApi helpers.
Controller	IBattleController, BattleStateView	Mutates health, armor, energy, statuses, cards, delayed triggers, variables, and summoned enemies.	Mutate through GCSApi or FlowGraph nodes, not by editing lists and fields.
Flow execution	GameCardFlowExecutor, EffectActionContext	Runs card, status, and enemy FlowGraphs with source, target, card, battle, controller, and databases in scope.	Graphs read and write through context helpers and controller actions.
Events	GCSEvents, IGCSEventChannel, GCSEventNames	Notifies UI, integrations, and custom systems when battle state changes.	Subscribe with GCSApi shortcuts or typed named events.
Presentation	UnitView, FloatingTextSystem, FX nodes, demo UI	Shows state changes through UI, animation, VFX, SFX, floating text, and camera feedback.	Presentation observes runtime results. It never owns gameplay rules.

---

Public entry point

GCSApi is the documented runtime facade. It is intentionally broad so custom UI, sample code, tools, and gameplay integrations do not need to depend on internal classes.

Use it for:

• Starting and disposing battles.
• Playing hand cards and ending the player turn.
• Reading battle phase, turn, energy, unit state, enemy intents, card piles, and status stacks.
• Applying controlled state changes.
• Reading active databases and finding content by GUID.
• Maintaining the run master deck.
• Subscribing to events.
• Discovering extension registries.

GCSApi.Manager, GCSApi.Battle, and GCSApi.Controller are exposed for integration work, but most code should prefer the named helper methods. They state intent more clearly and handle a missing battle with safe defaults.

---

Read state versus mutate state

GCS separates read-only state from writable control.

Surface	Type	What it can do
GCSApi.Battle	IBattleState	Read current turn, energy, player, piles, alive enemies, played/drawn history, and effective card cost.
GCSApi.Controller	IBattleController	Everything IBattleState can read, plus mutations that go through runtime rules.
GCSApi helpers	Static methods	Safe, named shortcuts for the same common reads and writes.

warning

Directly editing UnitState.Statuses, CardPile.Cards, or UnitState.CurrentHp bypasses hooks, events, UI updates, and validation. Use controller-backed methods instead.

---

Battle state model

A live battle contains:

State	Meaning
TurnNumber	Starts at 1 and increments after each enemy phase resolves.
IsPlayerTurn	True during player turn start, action, and end phases; false during the enemy phase.
PlayerEnergy	Energy still available this turn.
PlayerUnit	The player's unit state.
AliveEnemyUnits	Enemies still alive. Dead units are excluded.
HandPile, DrawPile, DiscardPile, ExhaustPile	Runtime card zones.
PlayedThisTurn	Cards played during the current turn, in play order.
DrawnThisTurn	Cards drawn during the current turn, in draw order.

The draw pile is ordered so the last element is the next card drawn.

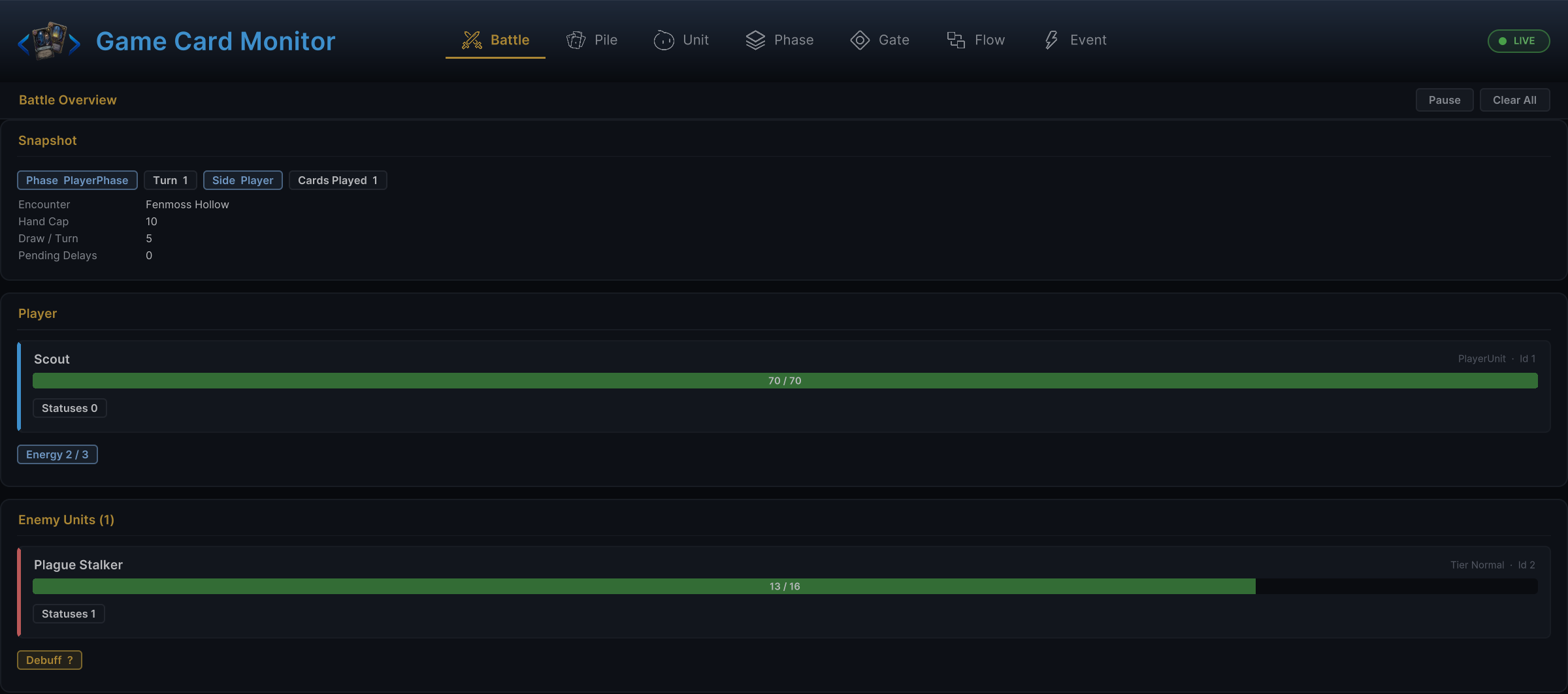

The Battle tab of the Game Card Monitor shows this model live in Play Mode: active encounter, phase, turn, a player snapshot, and the enemy list.

---

Unit state model

UnitState is the live unit record used by the battle.

Field or property	Meaning
UnitId	Runtime id used by UI and events.
Source	The authored GameUnit asset behind the unit.
CurrentHp, MaxHp	Current and maximum health.
CurrentArmor	Current armor.
CurrentEnergy	Energy value on the unit. For the player's battle pool, read GCSApi.PlayerEnergy.
Statuses	Runtime stack counts by GameStatus.
StatusAppliers	The unit that applied each status, when known.
ActiveHooks	Runtime hooks contributed by statuses and cards.
WasAttackedThisTurn	Whether the unit has been attacked this turn.
SkipNextTurns	Pending skipped turns.
IsDead	True when current HP is 0 or below.
HpPercent	Integer percentage of current HP over max HP.

For external reads, prefer GCSApi.Hp, GCSApi.MaxHp, GCSApi.Armor, GCSApi.HpPercent, GCSApi.HasStatus, and GCSApi.StatusesOn.

---

Flow execution context

When a FlowGraph runs, GCS builds an execution context that carries:

Context value	What it means
Source	The unit responsible for the behavior.
Host	The unit or owner currently hosting the behavior.
Target	The chosen or resolved target.
Battle	Read-only battle state.
Controller	Rule-aware mutation surface.
Card	The active card instance, when the graph is card-related.
Status database	Active status lookup.
Card database	Active card lookup.
Enemy unit database	Active enemy lookup.

Built-in nodes use this context automatically. Custom nodes should also read inputs and mutate state through the context and controller rather than through unrelated global lookups.

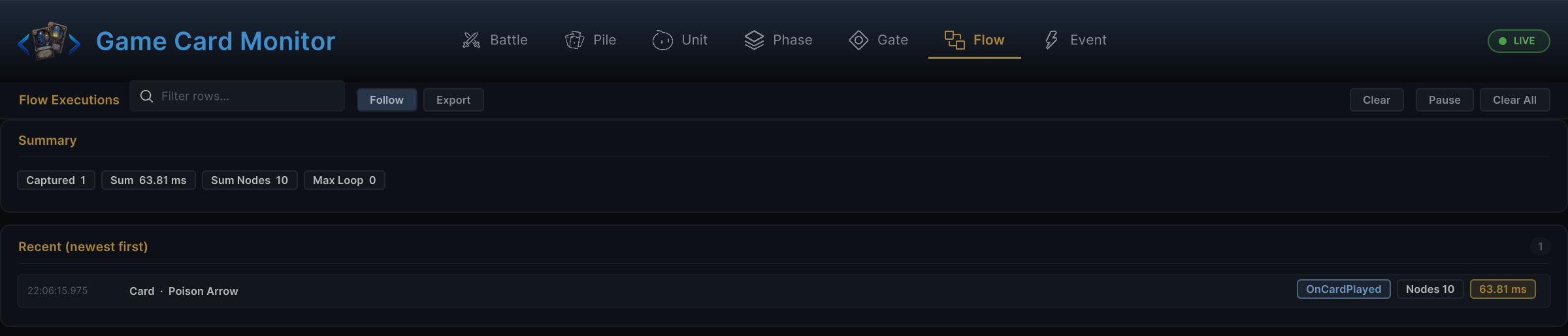

To watch this context feed real executions, open the Flow tab of the Game Card Monitor. It lists every graph run the executor reports, newest first:

---

Waits and async presentation

The battle state machine can pause progression while presentation or player choices are still resolving.

Mechanism	Used for
Choice wait	Choice nodes pause execution until the player picks or skips.
Animation gate	Animation and presentation can hold phase transitions until a gated action completes.
Flow wait	Wait nodes delay a continuation by seconds or by animation id.
Reward wait	After a win, reward selection keeps the battle waiting until applied or skipped.

This is why custom UI should react to events and state changes instead of assuming one API call completes every visible step immediately.

---

Events are notifications, not state storage

Events tell systems what just changed. They are not the source of truth. A custom UI should use events to know when to refresh, then read the current state through GCSApi:

1. Subscribe to a relevant event.
2. In the handler, read current state from GCSApi.
3. Update your view model or UI widgets.
4. Dispose subscriptions when the UI is destroyed.

This keeps UI correct even when several events fire in quick succession.

---

Integration boundaries

Need	Recommended surface
Custom battle UI	GCSApi read helpers plus typed event shortcuts.
Card play controls	GCSApi.CurrentHand, GCSApi.CanPlayCard, GCSApi.TryPlayCard, GCSApi.RequiresTarget.
Unit panels	GCSApi.Player(), GCSApi.AliveEnemies(), unit helpers, HP/status/intent events.
Content browser	GCSApi.Cards, Decks, PlayerUnits, EnemyUnits, Statuses, Encounters, and the Find* helpers.
Runtime mutation from external systems	GCSApi mutation helpers or GCSApi.Controller.
Custom event bridge	GCSApi.Subscribe, GCSApi.Events, GCSApi.RaiseGameEvent, or GES bridge events.

Avoid depending on demo-only components such as sample hand views, reward views, or scene-specific presenters unless you are modifying the demo itself.
