Status System

⚡

GCS · Runtime

How status stacks live on units at runtime, when they tick and decay, and which events keep your UI honest.

Use this when a status ticks at the wrong time, stacks show stale numbers in your UI, or a damage hook never fires.

Statuses are authored as GameStatus assets and live on units as runtime stack counts. A status can display an icon, track stacks, decay over time, contribute hooks, and run FlowGraph behavior. The Unit tab of the Game Card Monitor shows every unit's current stacks live.

Authored status fields

Field	Runtime meaning
DisplayName	User-facing name.
Description	Player-facing description with optional tokens.
Icon	UI icon.
IsDebuff	Marks the status as a debuff for filtering and presentation.
StackRule	How new stacks combine with existing stacks: Additive adds them, Max keeps the higher count, Replace overwrites.
MaxStacks	Maximum stack count; negative means no practical limit.
DecayRule	When stacks decay: PerTurn loses one stack at the end of the owner's turn, Never waits for explicit removal.
ShowStackCount	Whether UI should show stack numbers.
Tags	Authoring and FlowGraph filters.
Behavior	FlowGraph that reacts to status lifecycle, hooks, and timings.

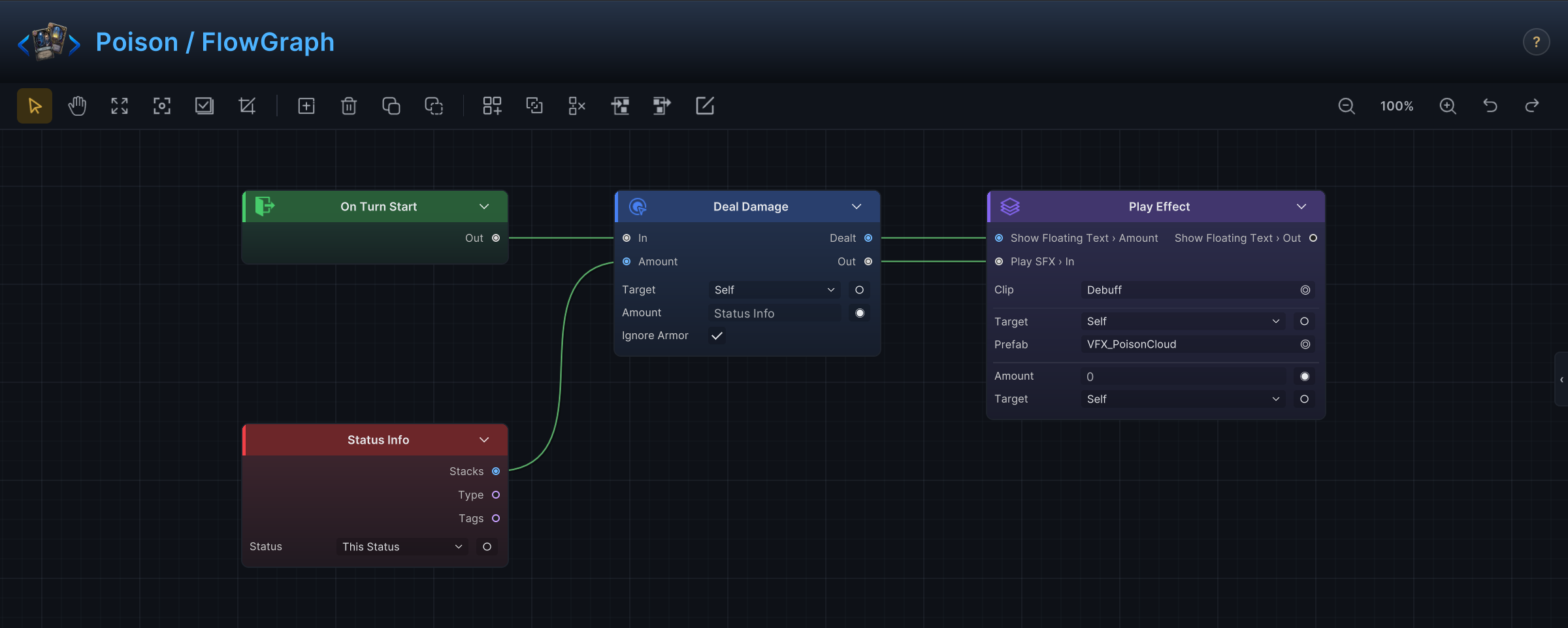

The Behavior graph is where a status earns its keep. The demo's Poison, for example, deals 1 damage per stack at the start of the owner's turn, ignores armor, then loses one stack:

---

Runtime storage

Each UnitState stores status data:

Runtime data	Meaning
Statuses	Dictionary from GameStatus to stack count.
StatusAppliers	Dictionary from GameStatus to the unit that applied it.
ActiveHooks	Hook entries contributed by status and card behavior.

Use these public helpers instead of reading the dictionaries directly:

Need	API
Stack count	GCSApi.GetStatusStacks(unit, status)
Has at least N stacks	GCSApi.HasStatus(unit, status, minStacks)
Who applied the status	GCSApi.GetStatusApplier(unit, status)
All statuses on a unit	GCSApi.StatusesOn(unit)

StatusesOn returns an empty map when the unit is null or has no statuses.

---

Applying and changing statuses

Task	API or node
Apply stacks	GCSApi.ApplyStatus(target, status, stacks, source) or the Change Status node.
Remove stacks	GCSApi.RemoveStatus(target, status, stacks) or Remove Statuses / Change Status.
Add or subtract by delta	GCSApi.ModifyStatusStacks(target, status, delta)
Re-run behavior without changing stacks	The Reapply Status node or the controller's RetriggerStatus.

Status changes run through runtime rules and raise events. Avoid manually editing UnitState.Statuses.

---

Hooks versus lifecycle entries

Status behavior can do two different jobs.

Behavior kind	Use for	Examples
Lifecycle entries	React after something happened.	On Status Received, On Status Removed, On Turn Start.
Hooks	Change a value before it is committed.	Damage Taken Hook, Card Cost Hook, Draw Count Hook.

A hook that intends to change the value should end with a Write Hook node. Lifecycle entries use normal action nodes.

---

Decay and turn timing

Status decay and ticks are driven by the battle state machine. A status with PerTurn decay follows one loop from application to expiry:

Timing	What can happen
PlayerTurnStart	Player armor decay, player status start-turn behavior, delayed triggers.
PlayerTurnEnd	Discard phase, player status end-turn behavior, status tick/decay, hook ticking.
EnemyPhase, per enemy	Enemy status start-turn behavior, enemy action, enemy status end-turn behavior, status tick/decay.
BattleEnd	Battle-end status behavior on all units.

Use StatusTickedEventArgs when custom UI needs to animate a tick or decay. It carries the stacks and HP both before and after the tick.

---

Status events

Event	Payload	Use for
OnStatusChanged	StatusChangedEventArgs	Refresh a unit's status widget after stack changes.
OnStatusTicked	StatusTickedEventArgs	Animate damage, healing, or stack changes from a tick.
OnStatusInflicted	StatusTransitionEventArgs	React to incoming status application.
OnStatusExpired	StatusTransitionEventArgs	Animate natural expiration.
OnStatusRemoved	StatusTransitionEventArgs	Animate cleanse or manual removal.

StatusChangedEventArgs is the most useful UI refresh signal. The transition events are better for specialized effects and gameplay integrations.

---

Damage and status attribution

Damage caused by a status carries source attribution through runtime hooks and damage events. When a status applies damage, DamageEventArgs tells subscribers:

Field	Meaning
SourceUnitId	Unit responsible for the damage, when known.
TargetUnitId	Unit receiving the damage.
Amount	Final amount after runtime rules.
Lethal	Whether the target died from the damage.

Use this for UI labels, statistics, and combat log entries. Do not infer lethal damage by comparing stale HP values.

---

UI display rules

For status widgets:

1. Listen to OnStatusChanged, OnStatusTicked, OnUnitHpChanged, and OnUnitDied as needed.
2. Refresh the unit's current status map from GCSApi.StatusesOn(unit).
3. Use GameStatus.Icon, DisplayName, IsDebuff, ShowStackCount, and the stack count for display.
4. Hide statuses with zero stacks.

The demo UnitView also listens to status events to drive procedural status visuals. Custom UI can use the same event channel without depending on the demo view components.

---

Common mistakes

Mistake	Better approach
Editing UnitState.Statuses directly.	Use ApplyStatus, RemoveStatus, or ModifyStatusStacks.
Using a lifecycle entry to modify damage before it happens.	Use the matching hook.
Showing stack counts taken from an event alone.	Refresh from GCSApi.StatusesOn(unit).
Assuming all statuses are debuffs.	Check GameStatus.IsDebuff or tags.
Treating removed and expired as the same event.	Use OnStatusRemoved for manual removal and OnStatusExpired for natural expiration.
