GES · Introduction

Store Unity events as assets, configure callbacks and flows in the editor, or connect game logic through typed C# APIs.

Developers who need to raise events from a scene or script and see what responds.

The editor, Inspector, FlowGraph, and Monitor in the image work with the same event assets. Select an event from a database, configure its callbacks and follow-up steps, then observe the result in Play Mode.

Connect an event asset to a scene

Store events in a ScriptableObject database. A raising script and the receiver can reference the same event asset. When the script calls Raise(), GES invokes the configured callbacks.

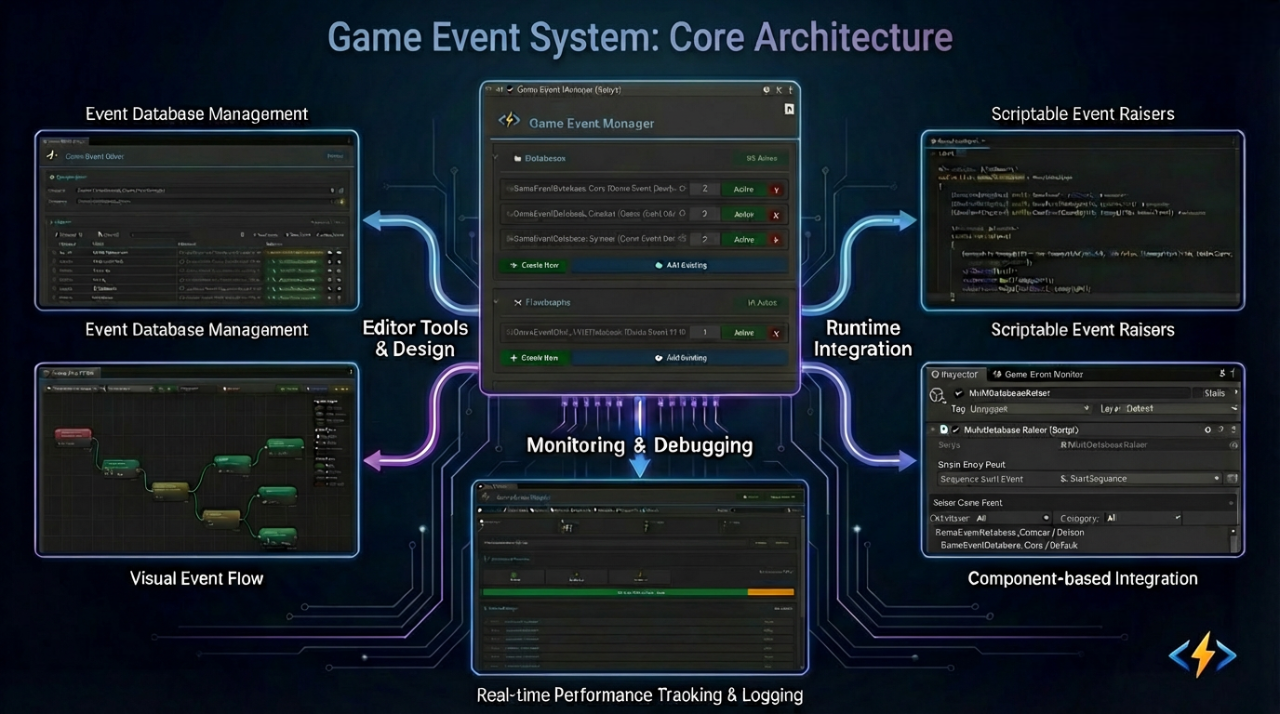

Game Event Manager connects the databases and FlowGraphs in the center. The tools on the left create and configure events. Components and C# scripts raise events on the right, and the Monitor shows what ran.

1. Select a database in Game Event Editor. Use Game Event Creator to create a parameterless, single-argument, or Sender + Args event.
2. Bind UnityEvent callbacks through the manager in Game Event Behavior, or configure Receiver Action Conditions in a component's Inspector.
3. Raise the event with a Game Event Raiser or a call to Raise(). Open Game Event Monitor to check the callbacks, execution time, and flow nodes.

The script below keeps references in event fields. The Unity Inspector filters the available events by the field type.

// Events are assets, not magic strings
[GameEventDropdown] public GameEvent onPlayerDeath;
[GameEventDropdown] public Int32GameEvent onScoreChanged;

void Die() {
    onPlayerDeath.Raise(); // Type-safe, asset-referenced
}

Renaming or moving a database through Unity keeps the asset file GUID in its .meta file. Each event within the database also has an internal GUID you can use for runtime queries.

# PlayerDeath.asset.meta
guid: a7f3c21e9b4d8f6e2d1a9c8b7e6f5a4d

The .meta fragment illustrates a Unity file GUID. The internal event GUID distinguishes events within that database.

Configure how events lead to other events

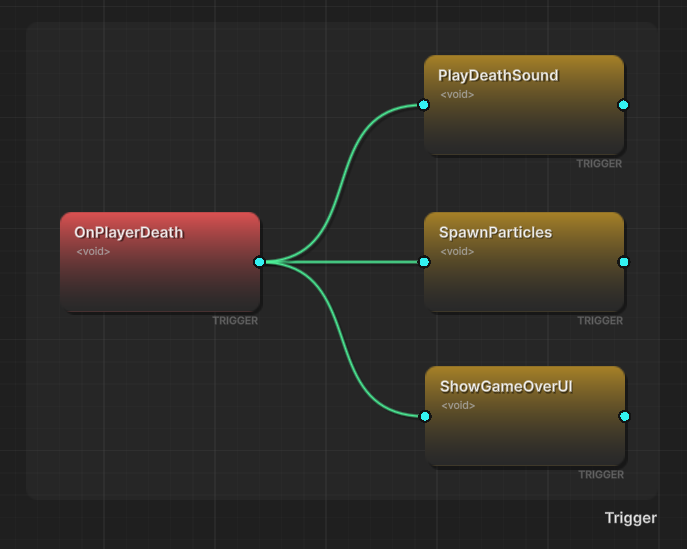

When one event needs to start several follow-up actions, connect Trigger nodes in FlowGraph and give each branch a condition and priority.

The source in the diagram connects to several targets. When it fires, the eligible branches start in priority order.

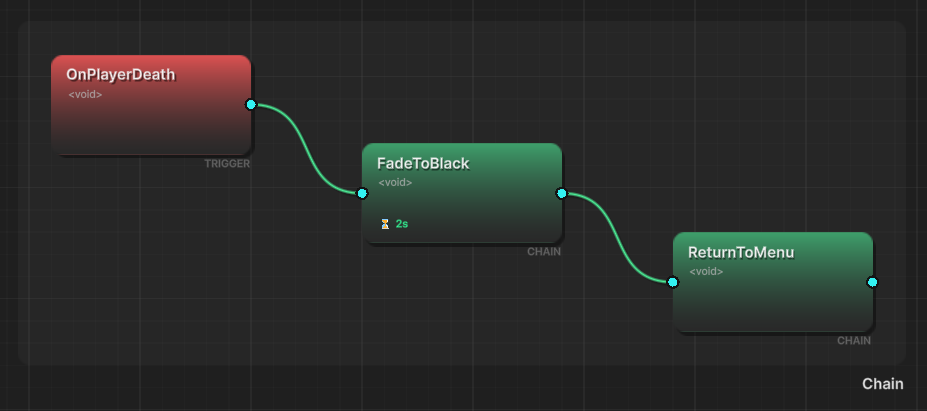

Connect Chain nodes to run steps in a defined sequence.

Each node leads to the next step. Set a delay or condition to determine when execution can continue.

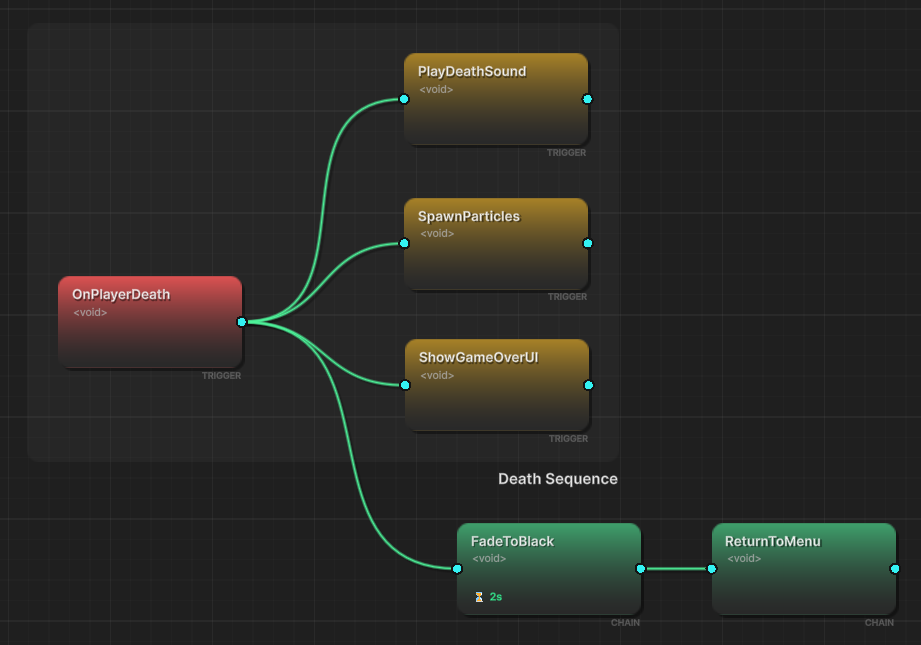

Combine Trigger and Chain nodes in one graph when branches need their own timing.

One branch in the diagram continues through a sequence. Follow its progress in the Monitor's Automation view.

Bind typed arguments in the Inspector

When you create an event for a custom argument, CodeGen supplies a concrete GameEvent<T> subclass. The Inspector uses that type to offer compatible event assets and native UnityEvent callbacks.

// ❌ Unity can't serialize this
[SerializeField] private GameEvent<PlayerData> onPlayerDataChanged;

After creating an event for PlayerData in the Creator, declare the generated type directly in your script.

// ✅ Auto-generated concrete class
[GameEventDropdown] public PlayerDataGameEvent onPlayerDataChanged;

// Generated code (automatic):
[Serializable]
public class PlayerDataGameEvent : GameEvent<PlayerData> { }

Generated event actions use typed dispatch. Run Bake AOT Conditions before an IL2CPP build so the Player can resolve condition evaluators by ID.

Load and inspect events at runtime

Register databases for dynamically loaded content through the Database and Query API, then find events by internal GUID, name, category, or type. Projects with Addressables can load a database by address or GUID and hold it with a lease.

Use Listening Strategies for basic, priority, conditional, and persistent listeners. Raising and Scheduling covers delay, repeat, and cancellation. Programmatic Flow covers Trigger and Chain relationships created at runtime.

To investigate dispatch costs, open Game Event Monitor in your project's Play Mode and compare invocation counts, listeners, and execution times. The times depend on your environment and the bound actions.

From the Creator

"I built this system because I was tired of battling 'invisible spaghetti code' in my own projects. As an indie developer, I needed a tool that balanced visual clarity with raw coding power—without performance trade-offs. TinyGiants is my commitment to professional-grade tools that I use in my own games every day." — [TinyGiants] from China

---

Navigation Roadmap

Open Quick Start for your first setup. Use the tool and example pages below when you need a specific editor or runtime workflow.

1. Introduction

Foundational setup and core philosophy of the event-as-asset architecture.

Page	Description
Project Structure	Understanding directory layout, folder protection, and modular organization.
Installation	Initializing the plugin and setting up the automated static reset pipeline.

2. Visual Workflow

Management tools designed to transform invisible code into a tangible visual dashboard.

Page	Description
System Dashboard	Overview of the asset-based workflow and GUID identity system
Database & FlowGraph	Handling multi-database and multi-flowgraph setups and database health maintenance
Edit Game Event	Using the Dashboard for batch editing, search, and categorization
Create Game Event	Rapidly generating event assets using the fuzzy-search batch wizard
Configure Game Event	Mastering Inspector binding with visual status markers and type safety
Raise Game Event	Learn how to call events and enhance inspectors using the built-in GameEventDropdown Attribute
Find Game Event	Scanning scenes to locate component-level event dependencies.
Visual Condition Tree	Learn how to control the logic execution of event action through condition tree configuration

3. Flow Orchestration

Visualizing and building complex multi-step logic sequences using nodes.

Page	Description
Node Editor	Managing the GraphView canvas, groups, and snapshot-based Undo/Redo
Node Connector	Rules for hybrid execution modes and real-time connection validation
Node Behavior	Configuring node-level delays, loops, and argument transformation logic
Advanced Logic Patterns	Building no-code nested logic groups and conditional execution gates

4. Scripting & API

The developer's guide to high-performance C# integration and lifecycle management.

Page	Description
Raising & Scheduling	Programmatic firing, delayed execution, and Task Handle management
Listening Strategies	Implementing prioritized, persistent, and source-aware (Sender) listeners
Programmatic Flow	Using typed predicates for runtime logic filtering
Database & Query	Runtime database lifecycle and locating events by GUID / Name / Category / Type
Best Practices	Architectural tips for clean decoupling and preventing data pollution
API Reference	Detailed technical documentation for all core classes and attributes

5. Tools & Support

Automation and monitoring utilities for professional production environments.

Page	Description
CodeGen & Cleanup	Using the Tri-Mode Generator and compilation pipeline automation
Runtime Monitor	Real-time performance profiling, deep logging, and warning systems
AOT Condition Baking	Update the condition registry used by Player builds
Addressables	Load event databases on demand and manage their leases
Community & Support	Accessing updates, reporting bugs, and getting technical assistance

6. Examples

GES 2.3.0 includes 29 Unity scenes across these 15 demo topics.

ID	Example Page	Key Learning Point
00	Quick Start	The minimal workflow for creating, raising, and binding an event
01	Void Event	Using parameterless signals for global triggers like "Level Start"
02	Basic Types Event	Passing primitive data (int, float, string) through events
03	Custom Type Event	Leveraging CodeGen for serialized custom data classes and structs
04	Custom Sender Event	Using source-aware events to identify which entity raised the signal
05	Priority Event	Precisely controlling the execution order of multiple listeners
06	Conditional Event	Using predicates to execute callbacks only when criteria are met
07	Delayed Event	Managing timed logic and using Task Handles for cancellation
08	Repeating Event	Creating recurring pulse signals and automated logic loops
09	Persistent Event	Handling events during scene transitions (DontDestroyOnLoad)
10	Trigger Event	Bridging Unity's Physics system with Game Event assets
11	Chain Event	Building visual sequential logic using the Flow Orchestration graph
12	Multi Database	Isolating events into different assets for modular project organization
13	Runtime API	Registering and unregistering listeners dynamically via C# scripts
14	Runtime Monitor	Using profiling tools to debug execution timing and GC allocations

Navigational Tip

For a hands-on start, follow Example 00 (Quick Start) first, then explore the Visual Workflow section to see how the editor tools speed up your development.
