Game Event Creator

🏭

GES · Visual Workflow

Create typed Game Events in batch: parameterless events, single-parameter events, and sender events. This page walks through the creation workflow and explains how the codegen and compilation pipeline turns queued types into event assets.

For developers setting up the event catalog for a project or a new feature.

The Creator is where you generate events in bulk. It handles batch event queuing, automatic code compilation, and ScriptableObject creation in one workflow.

🔈 Hover for sound

---

Opening the Creator

The Creator only opens from the Game Event Editor:

Game Event Editor → Click "+ New Event" button (top-right)

Why From Editor Only?

The Creator needs to know which database to add events to. Opening from the Editor ensures proper context.

---

Interface Zones

The window is organized into four functional areas:

Zone	Location	Purpose
A. Event Mode Tabs	Top	Switch between Void, Single Parameter, or Sender events
B. Configuration Area	Middle	Select types and configure event details
C. Events Queue	Bottom	Review pending events before creation
D. Status Badge	Top-right	Shows total queued count (e.g., "7 Queued Total")

---

Three Event Modes

Choose the architecture that fits your need:

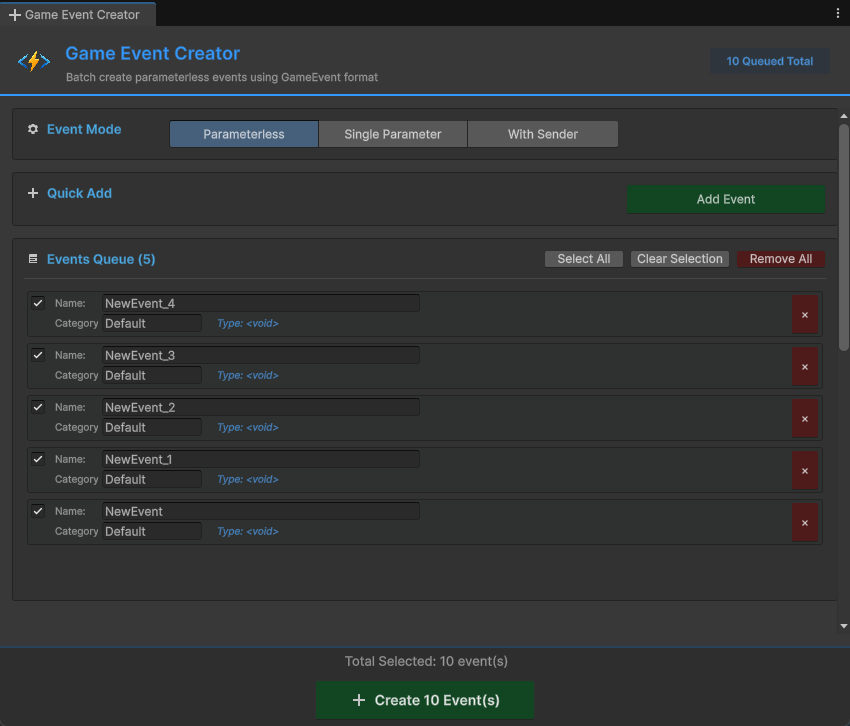

1. Parameterless

Parameterless Events

Type: GameEvent (Void)

The simplest signal—no data, just notification.

Best For:

🖱️ UI Triggers ➔ OnPauseButtonClick, OnMenuOpen
🌍 Global States ➔ OnGameStart, OnLevelComplete
🏃 Simple Actions ➔ OnJump, OnFire, OnInteract

How to Use:

1. Click "Add Event" button
2. Event appears in queue with default name "NewEvent"
3. Rename it in the queue (e.g., "OnGameStart")
4. Set category if desired (e.g., "Core")
5. Click "Create X Event(s)" at bottom

No Type Selection Needed: Since it's parameterless, you just click and add.

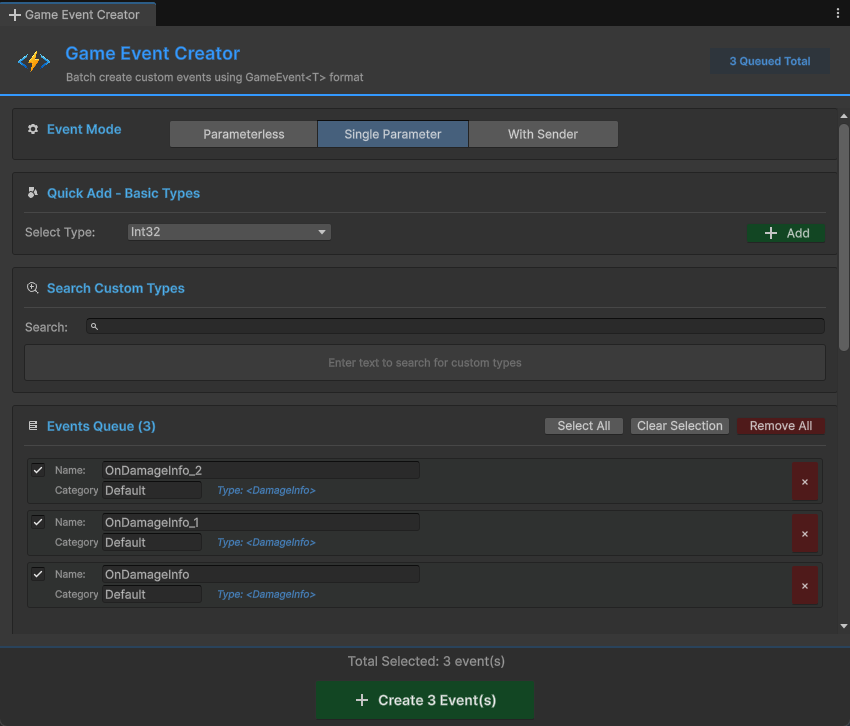

2. Single Parameter

Single Parameter Events

Type: GameEvent<T>

Carries one piece of data with the notification.

Best For:

📈 Value Changes ➔ OnHealthChanged(float), OnScoreUpdated(int)
🔄 State Updates ➔ OnGameStateChanged(GameState)
📦 Object Events ➔ OnEnemySpawned(GameObject)
💾 Data Sync ➔ OnPlayerDataChanged(PlayerData)

Two Ways to Add:

Method 1: Quick Add - Basic Types

For built-in Unity types (int, float, Vector3, GameObject, etc.):

1. Select Type from dropdown (shows all 32 basic types)
2. Click "Add" button
3. Event added to queue automatically

Available Basic Types:

• C# Primitives: int, float, bool, string, etc.
• Math Types: Vector2, Vector3, Quaternion, Color, etc.
• Components: GameObject, Transform, Rigidbody, etc.
• Assets: Sprite, Material, AudioClip, etc.

---

Method 2: Search - Custom Types

For your own C# classes:

1. Type in search bar (e.g., "PlayerData")
2. System searches all serializable types in your project
3. Click "Add" next to your type
4. Event added to queue

Search Features:

• ✅ Fuzzy matching (type "plr" finds "PlayerData")
• ✅ Shows namespace for disambiguation
• ✅ Badge shows how many events of this type are queued
• ✅ Green flash effect when adding

Requirements for Custom Types:

// ✅ This works
[System.Serializable]
public class PlayerData {
    public string playerName;
    public int level;
}

// ❌ This won't appear in search
public class NonSerializableClass { } // Missing [Serializable]

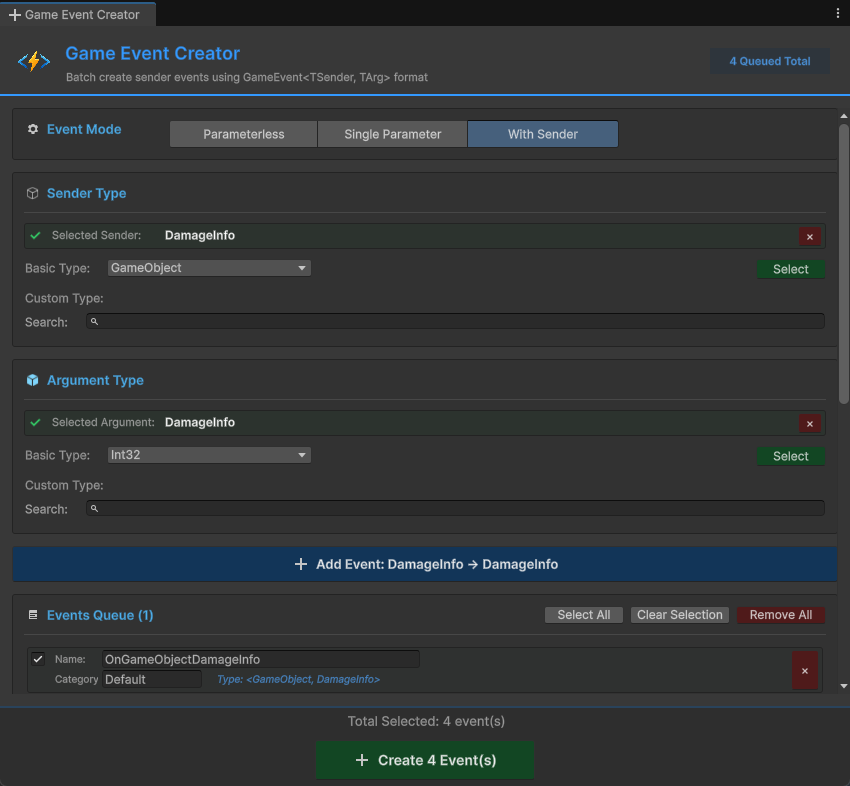

3. With Sender

Sender Events

Type: GameEvent<TSender, TArgs>

Carries both who fired it (sender) and what happened (argument).

Best For:

⚔️ Combat ➔ OnDamageTaken(GameObject victim, DamageInfo damage)
🤝 Interactions ➔ OnItemPickedUp(Player player, ItemID item)
🌐 Networking ➔ OnPlayerJoined(NetworkPlayer sender, string playerName)
📜 Complex Events ➔ OnQuestCompleted(QuestGiver npc, QuestData quest)

Recommended Pattern:

• TSender = The actor/source (GameObject, Player, Enemy)
• TArgs = The data/payload (int, DamageInfo, Vector3)

How to Use:

1. Select Sender Type:

   • Choose from Basic Types dropdown, OR
   • Search for custom type
   • Click "Select" when ready

2. Select Argument Type:

   • Choose from Basic Types dropdown, OR
   • Search for custom type
   • Click "Select" when ready

3. Add Event:

   • Blue button appears: "Add Event: GameObject → int" (example)
   • Click it to add to queue

Selected Type Display:

When you select types, they appear in green boxes:

✅ Selected Sender: GameObject <small>(UnityEngine)</small>
✅ Selected Argument: DamageInfo <small>(YourGame.Combat)</small>

Click the × to clear and choose different types.

---

Batch Creation Workflow

The Creator's power is batch processing—create many events at once instead of one-by-one.

Step-by-Step Process

1. Queue Events

Add multiple events across different modes:

🔘 Switch to Parameterless ➔ Add OnGameStart
🔘 Switch to Parameterless ➔ Add OnGamePause
🔢 Switch to Single Parameter(int) ➔ Add OnScoreChanged
🌊 Switch to Single Parameter(float) ➔ Add OnHealthChanged
👥 Switch to Sender <GameObject,int> ➔ Add OnEnemyDamaged

Total in Queue: 5 events pending creation

Visual Feedback:

• Top-right badge updates: "5 Queued Total"
• Each mode shows its own count: "Events Queue (2)"

---

2. Review & Configure

In the Events Queue section:

Per Event:

• ☑️ Checkbox: Toggle selection (only selected events will be created)
• Name Field: Rename event (default: "NewEvent", "OnInt", etc.)
• Category Field: Set category for filtering later
• Type Label: Shows event type signature
• × Button: Remove from queue

Bulk Actions:

• Select All: Check all events in current queue
• Clear Selection: Uncheck all events
• Remove All: Clear entire queue (with confirmation)

---

3. Execute Creation

Click the big green button at bottom:

+ Create 5 Event(s)

What Happens Next: See the next section ⬇️

---

Understanding the Creation Process

When you click "Create", a sophisticated automation pipeline runs. Here's what happens behind the scenes:

Scenario 1: Code Already Exists

Example: Creating an int event.

Speed: Instant (< 1 second)

No Compilation: You see the event in the Editor immediately.

---

Scenario 2: Code Needs Generation

Example: Creating a PlayerData event (your custom class).

Speed: 3-10 seconds (depends on project size)

You'll See:

1. Creator window closes
2. Unity compilation spinner appears
3. Console logs appear
4. Event appears in Editor automatically

What Gets Generated?

For each custom type, the system creates one C# file containing:

// File: PlayerDataGameEvent.cs

// 1. The Event Class
public class PlayerDataGameEvent : GameEvent<PlayerData> { }

// 2. The Binding Field (for Inspector)
public partial class GameEventManager {
    public partial class EventBinding {
        public UnityEvent<PlayerData> PlayerDataGameEventAction;
    }
}

Why Both? The event class is for raising events. The binding field is for Inspector callbacks.

---

Mixed Batch Handling

What if you queue both existing and new types?

Your Queue:
1. OnGameStart (void) ✅ Code exists
2. OnScoreChanged (int) ✅ Code exists
3. OnPlayerDataChanged (PlayerData) ⚠️ Needs generation
4. OnQuestCompleted (QuestData) ⚠️ Needs generation

System Behavior:

Console Output:

✅ [Batch] Immediate events created successfully. (2 events)
⏳ Generated 2 script files. Triggering compilation to finish creation...
   (After compilation)
🎯 Batch Creation Complete: 2 events created.

---

Sender Events Special Case

Sender events (GameEvent<TSender, TArgs>) follow the same logic but generate more complex code:

// File: GameObjectDamageInfoGameEvent.cs

// Event class with TWO type parameters
public class GameObjectDamageInfoGameEvent
    : GameEvent<GameObject, DamageInfo> { }

// Binding field with TWO parameters
public UnityEvent<GameObject, DamageInfo>
    GameObjectDamageInfoGameEventAction;

---

Best Practices

DO

Pre-Generate Common Types: If you know you'll use certain types frequently, you can refer to Code Gen & Cleanup to pre-generate custom type classes and event binding code.

---

Use Meaningful Names

✅ Good Names:
  - OnPlayerHealthChanged
  - OnEnemySpawned
  - OnQuestCompleted
  - OnScoreUpdated

❌ Avoid:
  - NewEvent1
  - Test
  - Event_Copy
  - TempEvent

---

Organize with Categories

Use categories to group related events:

🟥 Category: "Combat"
  - ⚡ OnDamageTaken
  - ⚡ OnEnemyKilled
  - ⚡ OnWeaponFired

🟩 Category: "UI"
  - ⚡ OnButtonClicked
  - ⚡ OnMenuOpened
  - ⚡ OnDialogClosed

🟪 Category: "Player"
  - ⚡ OnPlayerJumped
  - ⚡ OnPlayerDied
  - ⚡ OnLevelUp

---

AVOID

Don't Close During Compilation

❌ WRONG:
1. Click Create
2. See "Triggering compilation..." message
3. Immediately close Unity or force-stop compilation

✅ RIGHT:
1. Click Create
2. Wait for compilation bar to finish
3. Events appear automatically

Why? Interrupting compilation may leave generated code files without corresponding assets.

---

Don't Manually Edit Generated Files

❌ WRONG:
Open: TinyGiants/GameEventSystem/Data/CodeGen/Events/PlayerDataGameEvent.cs
Edit: Add custom methods, change namespace, etc.

✅ RIGHT:
Let the system manage generated files.
Extend functionality through separate scripts.

Why? The system may regenerate these files, overwriting your changes.

---

Progress Indicators

During Creation

Immediate Creation (code exists):

✅ Events created successfully.

Code Generation (new types):

⏳ Generated 3 script files. Triggering compilation to finish creation...

After Compilation:

🎯 Batch Creation Complete: 1 events created.

---

Console Logs Explained

Detailed Generation Report:

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🧩 Event Code Generation Complete
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

✅ Generated 3 event files (Type + Binding).

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

What This Means:

• 3 new C# files created
• Each file contains event class + binding field
• Files are in TinyGiants/GameEventSystem/Data/CodeGen/Events/ and Data/CodeGen/Components/
• Assets will be created automatically after compilation

---

Troubleshooting

Events Not Appearing After Compilation

Problem: Clicked Create, compilation finished, but events missing.

Solutions:

Check Console for Errors:

Look for red errors during compilation
Common issue: Type not serializable
Fix: Add [System.Serializable] to your class

Verify Database Selection:

1. Open Game Event Editor
2. Check which database is selected
3. Events are added to THAT database

Manual Asset Check:

1. Navigate to: TinyGiants/GameEventSystem/Data/Database/
2. Find your database asset
3. Expand it in Project window
4. Look for your event sub-assets

---

Compilation Takes Too Long

Problem: Stuck on "Compiling Scripts..." for minutes.

Causes:

• Large project with many scripts
• Other compilation errors blocking progress
• Unity Editor performance issues

Solutions:

1. Check Console for compilation errors
2. Fix any red errors first
3. Try: Assets → Reimport All (last resort)
4. Restart Unity if stuck > 5 minutes

---

"Type Not Found" After Generation

Problem: Console says type not found even after compilation.

Checklist:

✅ Is your type [Serializable]?

✅ Is your type public?

✅ Does Unity recognize your type? (check Inspector)

✅ Did compilation actually finish? (no spinner)

Fix:

// Make sure your class looks like this:
using System;
using UnityEngine;

[Serializable]  // ← Required
public class PlayerData  // ← Must be public
{
    public string playerName;
    public int level;
}

---

Duplicate Event Names

Problem: Two events with same name in queue.

Behavior: System auto-renames with suffix:

Queue:
- OnPlayerDeath
- OnPlayerDeath_1
- OnPlayerDeath_2

Better Practice: Rename manually in the queue before creating it.

---

Pro Workflow

First-Time Setup: Create all your common event types in one batch session. Wait for compilation once. From then on, event creation is instant since all code exists. This one-time investment saves hours over the project lifetime.

Code Location

Generated files live in:

Assets/TinyGiants/GameEventSystem/Data/CodeGen/
├─ Events/        (event classes)
│  └─ Basic/      (pre-generated for int, float, etc.)
└─ Components/    (bridge components: Raiser / Receiver)
   └─ Basic/      (pre-generated for int, float, etc.)

These folders are safe to commit to version control—they're deterministic and won't cause merge conflicts.
