11 Chain Event: Sequential Execution Pipeline

GES · Examples

Run a five-step launch protocol where each node waits for the one before it, a condition node gates the sequence, and one failed check stops everything downstream.

For developers scripting ordered sequences: cutscenes, weapon charge cycles, tutorial steps.

Overview​

The launch sequence checks the safety lock before it starts the timed steps. In the FlowGraph, each Chain node controls when its next step can run. Test both safety-lock states to see where the sequence stops or continues.

🔈 Hover for sound

Demo Scene​

Assets/TinyGiants/GameEventSystem/Demo/11_ChainEvent/11_ChainEvent.unity

Scene Composition​

Visual Elements:

  • 🔴 Turret_A (Left) - Red launcher
  • 🔵 Turret_B (Right) - Blue launcher
  • 🎯 TargetDummy - Center capsule target
  • 📺 HoloDisplay - Status display panel
    • Shows "SAFELOCK READY" when safety is off
    • Shows "SAFELOCK ACTIVED" when safety is on

UI Layer (Canvas):

  • 🎮 Three Buttons - Bottom of the screen
    • "Launch A" → Triggers ChainEventRaiser.RequestLaunchA()
    • "Launch B" → Triggers ChainEventRaiser.RequestLaunchB()
    • "Toggle SafeLock" (Orange) → Triggers ChainEventReceiver.ToggleSafetyLock()

Game Logic Layer:

  • 📤 ChainEventRaiser - Sequence initiator

    • Only references ONE entry point: 0_StartSequence
    • No knowledge of downstream pipeline steps

  • 📥 ChainEventReceiver - Step executor

    • Contains 5 methods for each pipeline stage
    • Exposes IsSafetyCheckPassed property for condition validation
    • Contains isSafetyLockDisengaged flag (toggle-able)

How to Interact​

The 5-Step Launch Protocol​

One root event (0_StartSequence) triggers a sequential pipeline with validation, delays, and async waiting.

Step 1: Enter Play Mode​

Press the Play button in Unity.

Initial State:

  • Safety lock: DISENGAGED (default)
  • HoloDisplay: "SAFELOCK READY"
  • Both turrets idle

Step 2: Test Successful Launch (Safety Off)​

Current State Check:

  • Ensure HoloDisplay shows "SAFELOCK READY"
  • If not, click "Toggle SafeLock" to turn safety OFF

Click "Launch A":

Sequential Execution:

[Step 1: System Check] - Immediate

  • 🔍 Condition Node evaluates ChainEventReceiver.IsSafetyCheckPassed property
  • Property checks isSafetyLockDisengaged flag
  • Result: TRUE ✅
  • Console: [Chain Step 1] Turret_A Checking...
  • Chain proceeds to Step 2

[Step 2: Charge]

  • VFX: A charging particle effect spawns at the turret
  • The chain waits for the configured 1.0s Duration before it fires
  • Console: [Chain Step 2] Turret_A Charging...
  • Graph waits exactly 1.0s before continuing
  • After delay, chain proceeds to Step 3

[Step 3: Fire] - Immediate

  • 🚀 Projectile instantiated and launched toward target
  • Muzzle flash VFX at turret
  • Console: [Chain Step 3] Turret_A FIRED payload: 500
  • Projectile travels to target
  • Chain immediately proceeds to Step 4

[Step 4: Cool Down] - Delay, duration, and a one-frame wait

  • 💨 Steam VFX particle system spawns
  • The node waits 0.5 seconds before dispatch, then holds for 1 second and one additional frame
  • Console: [Chain Step 4] Turret_A Cooldowning.
  • The node uses its configured duration and adds a one-frame wait.
  • The chain proceeds to Step 5 after the configured wait

[Step 5: Archive] - Immediate (Arguments Blocked)

  • 📝 Final logging step
  • PassArgument = FALSE in graph → receives default/null values
  • Console: [Chain Step 5] Archived. Data Status: CLEAN
  • Turret unlocked for next use
  • Chain completes successfully ✅

Timeline:

0.0s  → Step 1: System Check (instant)
0.0s  → Step 2: Charge starts
1.0s  → Step 3: Fire (after charge delay)
1.5s  → Step 4: CoolDown starts
~2.5s → Step 5: Archive (after duration and one frame)
~2.5s → Sequence complete

Result: ✅ Full 5-step launch sequence executed successfully.

Step 3: Test Failed Launch (Safety On)​

Click "Toggle SafeLock":

  • Safety flag changes: isSafetyLockDisengaged = false
  • HoloDisplay updates: "SAFELOCK ACTIVED"
  • UI button color changes to orange (visual warning)
  • Console: [Chain Settings] Safety Lock Disengaged: False

Click "Launch B":

Sequential Execution:

[Step 1: System Check] - FAILS ❌

  • 🔍 Condition Node evaluates ChainEventReceiver.IsSafetyCheckPassed
  • Property checks isSafetyLockDisengaged → finds FALSE
  • Property executes failure feedback:
    • 🚨 Red alarm vignette flashes 3 times
    • Alarm sound plays
    • Console: [Chain Blocked] Safety Check Failed. Sequence stopped immediately.
  • Condition returns FALSE
  • 🛑 CHAIN TERMINATES HERE

[Steps 2-5] - NEVER EXECUTE

  • ❌ No charging VFX
  • ❌ No projectile fired
  • ❌ No steam cooldown
  • ❌ No archive log

Result: ❌ Launch aborted at gate. Steps 2-5 never ran.

🔴 Critical Chain Behavior

When a Chain node's condition fails:

  1. Immediate Termination - Execution stops at that node
  2. No Downstream Execution - Subsequent nodes never run
  3. No Partial Completion - All-or-nothing behavior
  4. Early Cleanup - Resources unlocked immediately

This is fundamentally different from Trigger Events, where failed conditions just skip individual branches while others continue.

Scene Architecture​

Chain vs Trigger: The Fundamental Difference​

Trigger Event (Parallel):

⚡ Root Event: OnInteraction
│
├─ 🔱 Branch A: [ 🛡️ Guard: `HasKey == true` ]
│  └─ 🚀 Action: OpenDoor() ➔ ✅ Condition Passed: Executing...
│
├─ 🔱 Branch B: [ 🛡️ Guard: `PlayerLevel >= 10` ]
│  └─ 🚀 Action: GrantBonusXP() ➔ ❌ Condition Failed: Branch Skipped
│
└─ 🔱 Branch C: [ 🛡️ Guard: `Always True` ]
   └─ 🚀 Action: PlaySound("Click") ➔ ✅ Condition Passed: Executing...
│
📊 Summary: 2 Paths Executed | 1 Path Skipped | ⚡ Timing: Concurrent

Chain Event (Sequential):

🏆 Initiation: Root Event
│
├─ 1️⃣ [ Step 1 ] ➔ 🛡️ Guard: `Condition A`
│  └─ ⏳ Status: WAIT for completion... ✅ Success
│
├─ 2️⃣ [ Step 2 ] ➔ 🛡️ Guard: `Condition B`
│  └─ ⏳ Status: WAIT for completion... ✅ Success
│
├─ 3️⃣ [ Step 3 ] ➔ 🛡️ Guard: `Condition C`
│  └─ ⏳ Status: WAIT for completion... ❌ FAILED!
│
└─ 🛑 [ TERMINATED ] ➔ Logic Chain Halts
   └─ ⏭️ Step 4: [ SKIPPED ]
│
📊 Final Result: Aborted at Step 3 | ⏳ Mode: Strict Blocking

When to Use Each:

PatternUse ChainUse Trigger
Cutscene✅ Sequential shots❌ Steps out of order
Combat System❌ Rigid order not needed✅ Parallel systems
Tutorial✅ Must finish step 1 before step 2❌ Steps can overlap
Weapon Charge✅ Charge → Fire → Cooldown❌ Order matters
Achievement❌ Independent checks✅ Multiple triggers

Event Definitions​

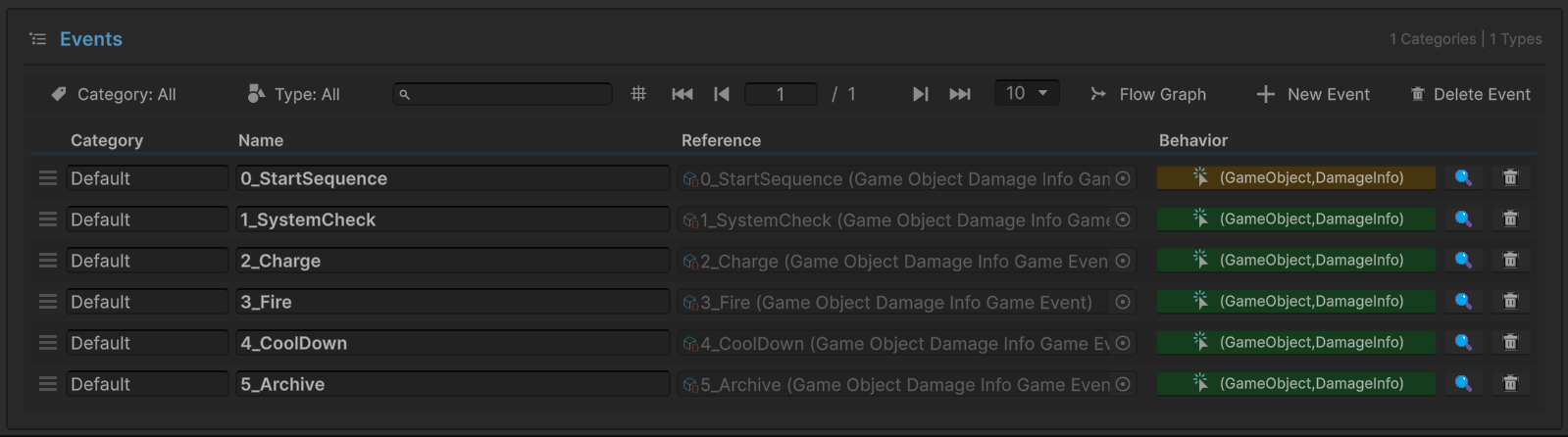

Game Event Editor

Event NameTypeRoleStep
0_StartSequenceGameObjectDamageInfoGameEventRoot (Gold)Entry
1_SystemCheckGameObjectDamageInfoGameEventChain (Green)1
2_ChargeGameObjectDamageInfoGameEventChain (Green)2
3_FireGameObjectDamageInfoGameEventChain (Green)3
4_CoolDownGameObjectDamageInfoGameEventChain (Green)4
5_ArchiveGameObjectDamageInfoGameEventChain (Green)5

Key Insight:

  • Root raises the chain
  • Chain nodes auto-trigger sequentially
  • Code only calls .Raise() on root—graph handles rest

Flow Graph Configuration​

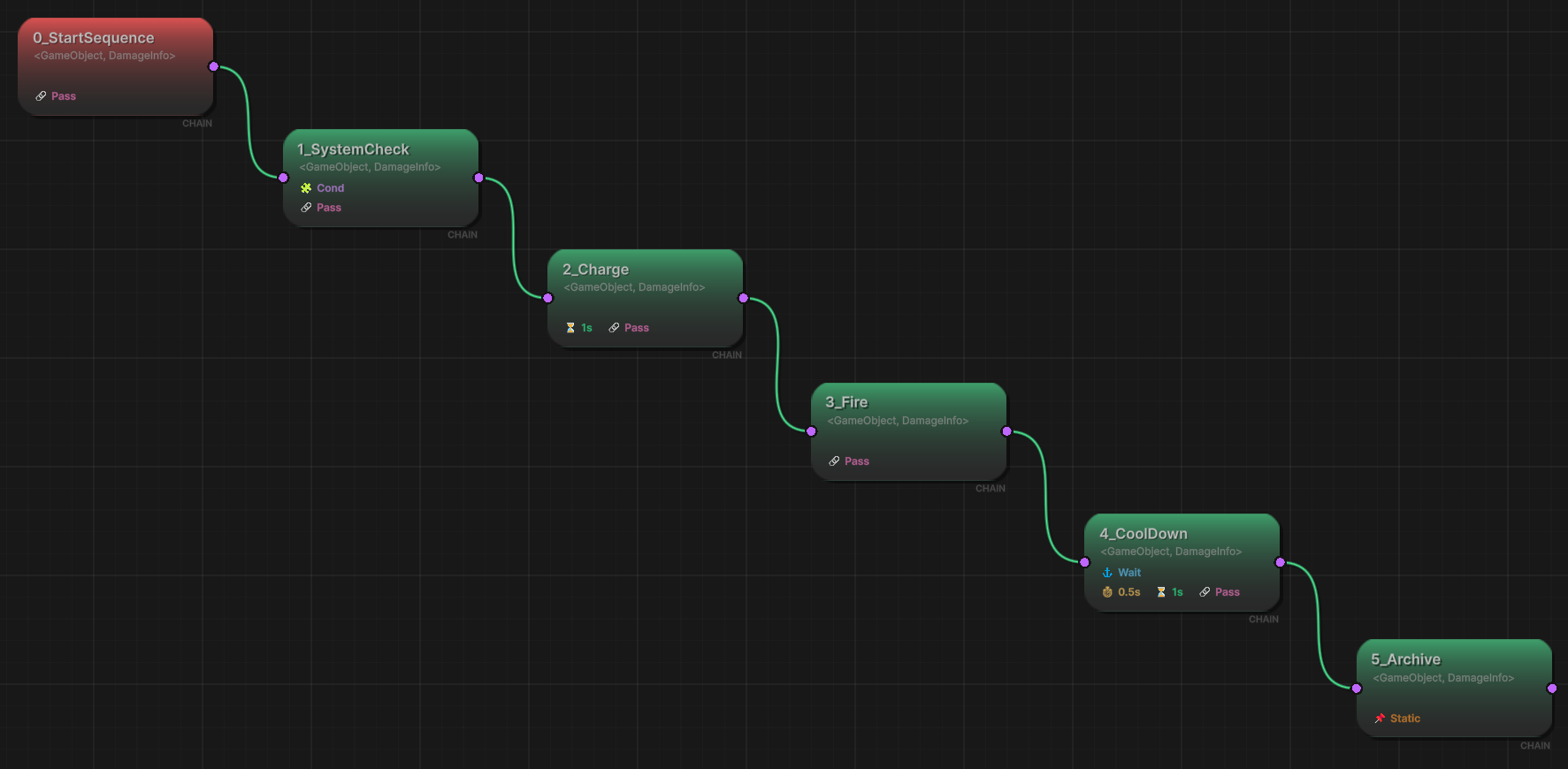

Click "Flow Graph" button to visualize the sequential pipeline:

Flow Graph Overview

Graph Structure (Left to Right):

Node 1: 0_StartSequence (Root, Red)

  • Entry point raised by code
  • Type: GameObjectDamageInfoGameEvent
  • Connects to first chain node

Node 2: 1_SystemCheck (Chain, Green)

  • ✅ Condition Node - Gate keeper
  • Condition: ChainEventReceiver.IsSafetyCheckPassed == true
    • Evaluates scene object property at runtime
    • If false → chain breaks immediately
  • Action: ChainEventReceiver.OnSystemCheck(sender, args)
  • Green checkmark icon indicates condition enabled
  • PassArgument: ✓ Pass (full data forwarded)

Node 3: 2_Charge (Chain, Green)

  • ⏱️ Delay Node - Timed pause
  • Delay: 1.0 seconds (shown as ⏱️ 1s icon)
  • Action: ChainEventReceiver.OnStartCharging(sender, args)
  • Graph freezes here for exactly 1 second
  • PassArgument: ✓ Pass

Node 4: 3_Fire (Chain, Green)

  • 🎯 Action Node - Standard execution
  • Action: ChainEventReceiver.OnFireWeapon(sender, args)
  • No delay, no condition
  • Executes immediately after previous step
  • PassArgument: ✓ Pass

Node 5: 4_CoolDown (Chain, Green)

  • Wait adds one frame after the node's duration
  • Delay: 0.5s (minimum wait)
  • WaitForCompletion: ✓ Checked (shown as ⏱️ 1s icon
  • Action: ChainEventReceiver.OnCoolDown(sender, args)
  • PassArgument: ✓ Pass

Node 6: 5_Archive (Chain, Green)

  • 🔒 Filter Node - Data sanitization
  • Action: ChainEventReceiver.OnSequenceArchived(sender, args)
  • PassArgument: 🔴 Static (argument blocked)
    • Even though previous nodes passed full data
    • This node receives default/null values
    • Demonstrates data firewall at end of chain
  • Final step—no downstream nodes

Connection Lines:

  • 🟢 Green "CHAIN" lines - Sequential flow
    • Each output port connects to next input port
    • Linear topology—no branching
    • Execution follows line left-to-right

Legend:

  • 🔴 Root Node - Entry point (raised by code)
  • 🟢 Chain Node - Auto-triggered in sequence
  • ✅ Checkmark Icon - Condition enabled
  • ⏱️ Clock Icon - Delay or wait configured
  • 🔒 Static Icon - Arguments blocked
🎨 Visual Pipeline Benefits

The Chain Graph provides instant understanding of:

  • Sequential Order - Left-to-right flow shows exact execution order
  • Validation Gates - Condition nodes act as checkpoints
  • Timing Control - Delay/wait icons show pause points
  • Data Flow - PassArgument toggles show where data is filtered
  • Failure Points - Condition nodes show where chain can break

This is infinitely cleaner than reading a coroutine with nested yield return statements!

Sender Setup (ChainEventRaiser)​

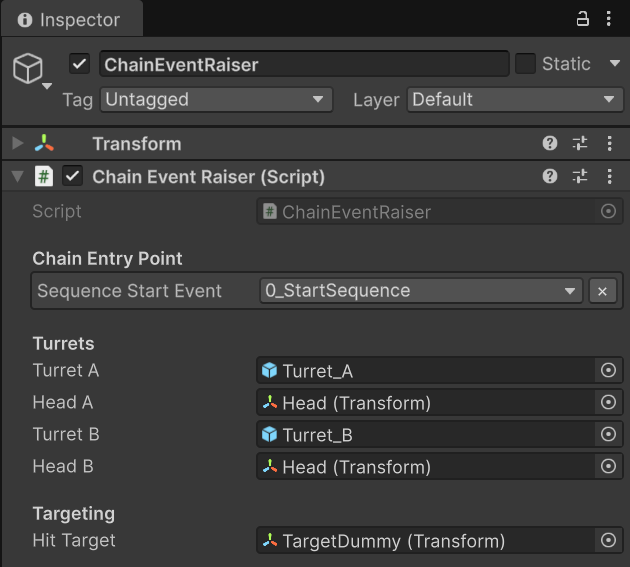

Select the ChainEventRaiser GameObject:

ChainEventRaiser Inspector

Chain Entry Point:

  • Sequence Start Event: 0_StartSequence
    • Tooltip: "The Start Node of the Chain Graph"
    • Only references the root—downstream is handled by graph

Turrets:

  • Turret A: Turret_A (GameObject), Head A (Transform)
  • Turret B: Turret_B (GameObject), Head B (Transform)

Targeting:

  • Hit Target: TargetDummy (Transform)

Critical Observation: Like Trigger demos, sender only knows about ONE event. The 5-step pipeline is completely abstracted into the graph.

Receiver Setup (ChainEventReceiver)​

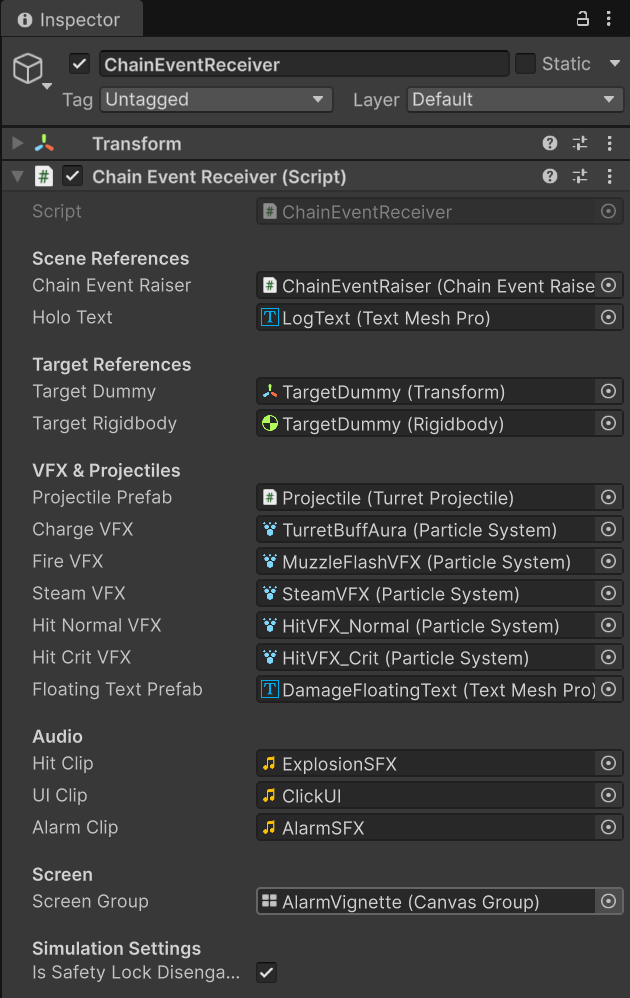

Select the ChainEventReceiver GameObject:

ChainEventReceiver Inspector

Scene References:

  • Chain Event Raiser: ChainEventRaiser (for unlock callbacks)
  • Holo Text: LogText (TextMeshPro) - displays lock status

Target References:

  • Target Dummy, Target Rigidbody

VFX & Projectiles:

  • Projectile Prefab: Projectile (TurretProjectile)
  • Charge VFX: TurretBuffAura (Particle System) - step 2
  • Fire VFX: MuzzleFlashVFX (Particle System) - step 3
  • Steam VFX: SteamVFX (Particle System) - step 4
  • Hit Normal/Crit VFX, Floating Text Prefab

Audio:

  • Hit Clip, UI Clip, Alarm Clip

Screen:

  • Screen Group: AlarmVignette (CanvasGroup) - red flash on failure

Simulation Settings:

  • ✅ Is Safety Lock Disengaged: TRUE (default)
    • Controls whether Step 1 condition passes
    • Toggle-able via "Toggle SafeLock" button

Code Breakdown​

ChainEventRaiser.cs (Sender)​

using UnityEngine;
using TinyGiants.GES.Runtime;

public class ChainEventRaiser : MonoBehaviour
{
    [Header("Chain Entry Point")]
    [Tooltip("The Start Node of the Chain Graph.")]
    [GameEventDropdown]
    public GameObjectDamageInfoGameEvent sequenceStartEvent;

    [Header("Turrets")]
    public GameObject turretA;
    public GameObject turretB;
    // ... head transforms & hit target reference ...

    private bool _isBusyA;
    private bool _isBusyB;

    /// <summary>
    /// UI Button A: Request Launch for Turret A.
    ///
    /// CRITICAL: Only raises the ROOT event.
    /// The Chain Graph orchestrates all 5 downstream steps automatically.
    /// </summary>
    public void RequestLaunchA()
    {
        if (sequenceStartEvent == null) return;

        Debug.Log("<color=cyan>[Raiser] Requesting Launch Protocol A...</color>");
        _isBusyA = true;

        // Build the data payload
        DamageInfo info = new DamageInfo(500f, true, DamageType.Physical,
                                        hitTarget.position, "Commander");

        // THE MAGIC: Single .Raise() starts entire 5-step chain
        // Graph automatically executes:
        // 1. System Check (with condition)
        // 2. Charge (1s duration)
        // 3. Fire (immediate)
        // 4. Cool Down (with wait-for-completion)
        // 5. Archive (with blocked arguments)
        sequenceStartEvent.Raise(turretA, info);
    }

    /// <summary>
    /// UI Button B: Request Launch for Turret B.
    /// Same logic, different turret.
    /// </summary>
    public void RequestLaunchB()
    {
        if (sequenceStartEvent == null) return;

        Debug.Log("<color=orange>[Raiser] Requesting Launch Protocol B...</color>");
        _isBusyB = true;

        DamageInfo info = new DamageInfo(200f, false, DamageType.Physical,
                                        hitTarget.position, "Commander");
        sequenceStartEvent.Raise(turretB, info);
    }

    // Unlock methods called by receiver when sequence completes or fails
    public void UnlockTurretA() => _isBusyA = false;
    public void UnlockTurretB() => _isBusyB = false;
}

Key Points:

  • 🎯 Single Event Reference - Only knows root event
  • 📡 Zero Pipeline Knowledge - No idea about 5 steps
  • 🔓 Unlock Callbacks - Receiver signals completion/failure
  • 🎬 Maximum Decoupling - All sequence logic in graph

ChainEventReceiver.cs (Listener)​

using UnityEngine;
using System.Collections;

public class ChainEventReceiver : MonoBehaviour
{
    [Header("Simulation Settings")]
    [Tooltip("If TRUE, passes check. If FALSE, chain breaks at Step 1.")]
    public bool isSafetyLockDisengaged = true;

    // ... scene references, VFX & audio fields (see demo source) ...

    /// <summary>
    /// Property accessed by '1_SystemCheck' Node Condition.
    ///
    /// Graph configuration: Scene Object → Property → IsSafetyCheckPassed
    ///
    /// CRITICAL: This is evaluated BEFORE the node action executes.
    /// If this returns false, the chain terminates immediately.
    /// </summary>
    public bool IsSafetyCheckPassed
    {
        get
        {
            bool result = true;

            if (!isSafetyLockDisengaged)
            {
                // FAIL PATH: Safety lock is engaged
                result = false;

                Debug.LogWarning(
                    "<color=red>[Chain Blocked] Safety Check Failed. " +
                    "Sequence stopped immediately.</color>");

                // Visual feedback for failure
                StopCoroutine(nameof(ScreenRoutine));
                if (screenGroup) StartCoroutine(ScreenRoutine());
            }

            return result;
        }
    }

    /// <summary>
    /// Toggles the safety lock status. Bind this to UI Button.
    /// </summary>
    public void ToggleSafetyLock()
    {
        if (UIClip) _audioSource.PlayOneShot(UIClip);

        isSafetyLockDisengaged = !isSafetyLockDisengaged;

        // Update UI
        string text = isSafetyLockDisengaged ? "SAFELOCK READY" : "SAFELOCK ACTIVED";
        if (holoText) holoText.text = text;

        Debug.Log($"[Chain Settings] Safety Lock Disengaged: {isSafetyLockDisengaged}");
    }

    /// <summary>
    /// [Chain Step 1] System Check
    /// Bound to '1_SystemCheck' chain node.
    ///
    /// Note: This action runs AFTER the condition passed.
    /// If condition failed, this method never executes.
    /// </summary>
    public void OnSystemCheck(GameObject sender, DamageInfo args)
    {
        bool isA = sender != null && sender.name.Contains("Turret_A");

        // If execution reaches here, condition passed
        // Still handle potential edge cases
        if (!IsSafetyCheckPassed)
        {
            // Unlock turret since sequence failed
            if (isA) chainEventRaiser.UnlockTurretA();
            else chainEventRaiser.UnlockTurretB();
        }

        Debug.Log($"[Chain Step 1] {sender.name} Checking...");
    }

    /// <summary>
    /// [Chain Step 2] Charge
    /// Bound to '2_Charge'. The chain waits for its 1.0s duration after dispatch.
    /// </summary>
    public void OnStartCharging(GameObject sender, DamageInfo args)
    {
        if (chargeVFX)
        {
            var vfx = Instantiate(chargeVFX, sender.transform.position + Vector3.up * 1.5f,
                                 Quaternion.identity);
            vfx.transform.SetParent(sender.transform);
            vfx.Play();
            Destroy(vfx.gameObject, 1.2f);
        }

        Debug.Log($"[Chain Step 2] {sender.name} Charging...");
    }

    /// <summary>
    /// [Chain Step 3] Fire
    /// Bound to '3_Fire' chain node.
    ///
    /// Spawns projectile and launches toward target.
    /// This executes immediately after Step 2 completes.
    /// </summary>
    public void OnFireWeapon(GameObject sender, DamageInfo args)
    {
        // Spawn muzzle flash
        if (fireVFX)
        {
            Vector3 spawnPos = sender.transform.position +
                             sender.transform.forward * 1.5f + Vector3.up * 1.5f;
            var vfx = Instantiate(fireVFX, spawnPos, sender.transform.rotation);
            vfx.Play();
            Destroy(vfx.gameObject, 2.0f);
        }

        // Launch projectile
        if (projectilePrefab != null)
        {
            var muzzlePos = sender.transform.Find("Head/Barrel/MuzzlePoint");
            var shell = Instantiate(projectilePrefab, muzzlePos.position,
                                   sender.transform.rotation);

            shell.Initialize(args.hitPoint, 20f, () =>
            {
                // Impact callback
                if (hitClip) _audioSource.PlayOneShot(hitClip);

                // Spawn hit VFX, floating text, apply physics...
                ParticleSystem vfxToPlay = args.isCritical ? hitCritVFX : hitNormalVFX;

                if (args.isCritical)
                    StartCoroutine(ShakeCameraRoutine(0.2f, 0.4f));

                // ... (VFX, physics, text logic) ...
            });
        }

        Debug.Log($"[Chain Step 3] {sender.name} FIRED payload: {args.amount}");
    }

    /// <summary>
    /// [Chain Step 4] Cool Down
    /// Bound to '4_CoolDown' chain node with WaitForCompletion.
    ///
    /// The graph waits for this coroutine to finish before proceeding to Step 5.
    /// The configured chain duration determines when the sequence advances.
    /// </summary>
    public void OnCoolDown(GameObject sender, DamageInfo args)
    {
        if (steamVFX)
        {
            var vfx = Instantiate(steamVFX, sender.transform.position + Vector3.up,
                                 Quaternion.Euler(-90, 0, 0));
            vfx.Play();
            Destroy(vfx.gameObject, 2.0f);
        }

        Debug.Log($"[Chain Step 4] {sender.name} Cooldowning.");
    }

    /// <summary>
    /// [Chain Step 5] Archive
    /// Bound to '5_Archive' chain node with PassArgument = FALSE.
    ///
    /// CRITICAL: Even though previous steps passed full DamageInfo,
    /// this node receives DEFAULT/NULL values due to graph configuration.
    ///
    /// Demonstrates data firewall—can sanitize sensitive data at end of chain.
    /// </summary>
    public void OnSequenceArchived(GameObject sender, DamageInfo args)
    {
        bool isA = sender != null && sender.name.Contains("Turret_A");

        // Unlock turret for next use
        if (isA) chainEventRaiser.UnlockTurretA();
        else chainEventRaiser.UnlockTurretB();

        // Check if data was successfully blocked
        bool isClean = (args == null || args.amount == 0);
        string logMsg = isClean ? "<color=cyan>CLEAN</color>" : "<color=red>LEAKED</color>";

        Debug.Log($"[Chain Step 5] Archived. Data Status: {logMsg}");
    }

    private IEnumerator ScreenRoutine()
    {
        // Red alarm vignette flash animation
        int flashes = 3;
        float flashDuration = 0.5f;

        for (int i = 0; i < flashes; i++)
        {
            if (alarmClip) _audioSource.PlayOneShot(alarmClip);

            // Sine wave alpha animation
            float t = 0f;
            while (t < flashDuration)
            {
                t += Time.deltaTime;
                float alpha = Mathf.Sin((t / flashDuration) * Mathf.PI);
                screenGroup.alpha = alpha * 0.8f;
                yield return null;
            }

            screenGroup.alpha = 0f;
            yield return new WaitForSeconds(0.1f);
        }
    }
}

Key Points:

  • 🎯 5 Independent Methods - Each handles one pipeline stage
  • ✅ Property for Condition - IsSafetyCheckPassed evaluated by graph
  • ⏱️ Timing Agnostic - Methods don't know about delays
  • 🔒 Data Firewall - Step 5 receives sanitized data
  • 🎬 Completion Callbacks - Unlocks turrets on success/failure

Key Takeaways​

ConceptImplementation
🔗 Sequential ExecutionNodes execute one-by-one in strict order
✅ Validation GatesCondition nodes terminate chain if failed
⏱️ Delay NodesFixed-time pauses between steps
🕐 Wait NodesOne additional frame after dispatch and duration
🔒 Data FilteringPassArgument controls data flow per node
🛑 Early TerminationFailed condition stops entire chain
🎯 All-or-NothingChain completes fully or terminates early
🎓 Design Insight

Chain Events are perfect for:

  • Cutscenes - Shot 1 → Shot 2 → Shot 3 in exact order
  • Weapon Sequences - Charge → Fire → Cooldown → Reload
  • Tutorial Steps - Must complete step N before step N+1
  • Crafting Recipes - Sequential ingredient addition
  • Boss Phases - Phase transitions with validation
  • Spell Casting - Channeling → Cast → Effect → Recovery

Chain vs Coroutine: Instead of writing:

IEnumerator LaunchSequence()
{
    if (!SafetyCheck()) yield break;
    Charge();
    yield return new WaitForSeconds(1.0f);
    Fire();
    yield return StartCoroutine(CoolDown());
    Archive();
}

Use a Chain Graph where:

  • Timing is visible and editable by designers
  • Conditions are visual checkpoints, not hidden if statements
  • Async waits are configurable, not hardcoded
  • Entire pipeline is debuggable via graph visualization
⚠️ Chain Gotchas
  1. Blocking Behavior: If Step 3 has a bug and never completes, Steps 4-5 never run
  2. Condition Timing: Conditions evaluate BEFORE node action—can't use action's side effects
  3. No Parallel Branches: Can't execute Step 2A and Step 2B simultaneously (use Trigger for that)
  4. Delay Stacking: Multiple delays add up—3 nodes with 1s each = 3s total wait
  5. Early Exit Cleanup: Always unlock resources in condition failure paths
On this page
