07 Delayed Event: The Time Bomb Scenario

GES · Examples

Build a defuse minigame to see how an event waits in a pending state after Raise() and how Cancel() pulls it back before it fires.

For developers adding cooldowns, cast times, or any action a player can interrupt.

🔈 Hover for sound

Overview

Standard events fire instantly (Raise() → Execute()). Delayed events add a gap: Raise() → [Pending State] → Execute(). This demo covers the scheduling system through a Cut the Wire minigame, where you configure a delayed execution and cancel the pending event before it runs.

💡 What You'll Learn

How to configure action delays in the Behavior Window
How the event scheduling system works internally
How to cancel pending events with .Cancel()
The difference between visual timers and logic timers

Demo Scene

Assets/TinyGiants/GameEventSystem/Demo/07_DelayedEvent/07_DelayedEvent.unity

Scene Composition

Visual Elements:

💣 TimeBomb_TNT - Cylindrical bomb in the center
- Black cylinder body with red caps
- Orange timer display showing countdown: "04.046" (updates in real-time)
- Two colored indicator lights (red and green) on top
- Sits on a grey circular platform

UI Layer (Canvas):

🎮 Three Buttons - Bottom of the screen
- "Arm Bomb" (White) → Triggers DelayedEventRaiser.ArmBomb()
- "Cut RedWire" (Red/Pink) → Triggers DelayedEventRaiser.CutRedWire()
- "Cut GreenWire" (Green) → Triggers DelayedEventRaiser.CutGreenWire()

Game Logic Layer (Demo Scripts):

📤 DelayedEventRaiser - GameObject with the raiser script
- Manages bomb arming and wire cutting logic
- Randomly determines which wire is safe each round
- Controls visual countdown timer (cosmetic)
- Calls .Cancel() when correct wire is cut
📥 DelayedEventReceiver - GameObject with the receiver script
- Listens to onExplodeEvent
- Executes explosion logic: VFX, physics, camera shake
- Only called if timer reaches zero (not canceled)

Audio-Visual Feedback:

🔊 Tick Sound - Plays every second during countdown
💥 Explosion VFX - Particle system spawns on detonation
⚡ Wire Sparks - Particle effect when cutting wires
📹 Camera Shake - Intense shake on explosion

How to Interact

The Defusal Challenge

You have 5 seconds to identify and cut the correct wire. One wire is SAFE (cancels the event), the other is a TRAP (does nothing).

🎲 Random Selection

The safe wire is randomized every time you arm the bomb! Pay attention to the Console log (or take your chances).

Step 1: Enter Play Mode

Press the Play button in Unity. The bomb displays "READY" in white text.

Step 2: Arm the Bomb

Click "Arm Bomb" (White Button):

What Happens:

🔊 Ticking sound begins (beep every second)
⏱️ Timer starts counting down from 05.000 in orange
🎲 System randomly selects safe wire (Red or Green)
📝 Console reveals the answer: [Game Logic] Bomb Armed! The SAFE wire is: Red
💣 Event enters Pending State - will execute in 5 seconds

Visual Changes:

Timer text turns from white to orange
Timer counts down with millisecond precision: 04.987, 04.834...
Color gradually shifts from orange → red as time runs out

Behind the Scenes:

explodeEvent.Raise() is called
Because Action Delay = 5s is configured in the Behavior Window
The event is queued in the GameEventManager's scheduler
A countdown timer starts internally

Step 3: Choose Your Fate

You now have three options with very different outcomes:

Option A: Do Nothing (Let It Explode)

Action: Don't click any button. Wait.

Timeline:

04.000 - Second tick sound
03.000 - Tick, timer turns more red
02.000 - Tick, urgency builds
01.000 - Final tick
00.000 - BOOM!

Result: 💥 EXPLOSION

Console: BOOM! The event executed.
Massive explosion VFX spawns at bomb location
Bomb cylinder becomes kinetic and launches into the air
Camera shakes violently (0.5s duration, 0.8 magnitude)
Explosion sound plays
Timer text changes to "ERROR" in dark red

Why: The 5-second delay elapsed, so DelayedEventReceiver.OnExplode() was invoked by the scheduler.

Option B: Cut the Wrong Wire

Action: Click the button that is NOT the safe wire.

Example: If Console said The SAFE wire is: Red, click "Cut GreenWire"

What Happens:

⚡ Wire sparks VFX plays
🔊 Wire cutting sound
📝 Console: [Player] Cutting Green Wire...
📝 Console: Wrong wire! The clock is still ticking...
⏱️ Timer continues counting down
💣 Event remains in Pending State

Result: Nothing changes. The countdown continues.

After a few seconds: BOOM! (same as Option A)
You get to feel the tension of making the wrong choice

Why: The code checks if (color == _safeWireColor), and since it's false, .Cancel() is never called. The scheduler keeps running.

Option C: Cut the Correct Wire (Defuse)

Action: Click the button matching the safe wire.

Example: If Console said The SAFE wire is: Red, click "Cut RedWire"

What Happens:

⚡ Wire sparks VFX plays
🔊 Wire cutting sound
📝 Console: [Player] Cutting Red Wire...
🎯 CRITICAL: explodeEvent.Cancel() is called
⏱️ Timer stops immediately at current value (e.g., 03.247)
📝 Console: BOMB DEFUSED! Event Cancelled.
✅ Timer text changes to "DEFUSED" in green
🔕 Defuse success sound plays
💣 Event removed from Pending State

Result: 🟢 SUCCESS - No Explosion

The bomb is safe
DelayedEventReceiver.OnExplode() is NEVER CALLED
You can arm the bomb again for another round

Why: .Cancel() removes the scheduled event from the GameEventManager's internal queue. When the 5-second timer would have elapsed, there's nothing to execute.

Scene Architecture

The Scheduling System

Delayed events use an internal timer managed by the GameEventManager:

🚀 Initiation: Raise()
│
📦 [ Queue Event + Start Timer ]
│
⏳ Status: Waiting...
│
├─ ⚡ Execution Path (Timer Expired)
│  └─► ✅ Execute() ➔ Logic Invoked
│
└─ 🛑 Interruption Path (Manual/Condition)
   └─► 🧹 Cancel() ➔ [ Removed from Queue ]

Key Concepts:

Pending State: Between Raise() and execution
Scheduler Queue: Internal list of timed events
Cancellation: Removes event from queue before execution
Atomic Operation: If canceled, receiver method never runs

Event Definition

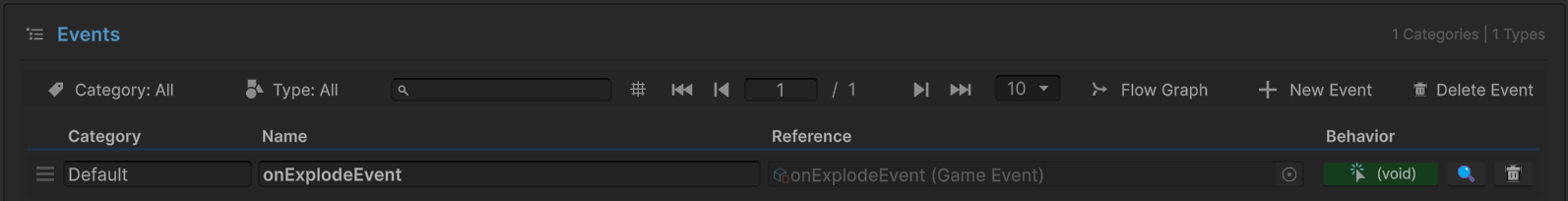

Game Event Editor

Event Name	Type	Configured Delay
`onExplodeEvent`	`GameEvent` (void)	5.0 seconds

Behavior Configuration with Delay

Click the (void) icon in the Behavior column to open the Behavior Window:

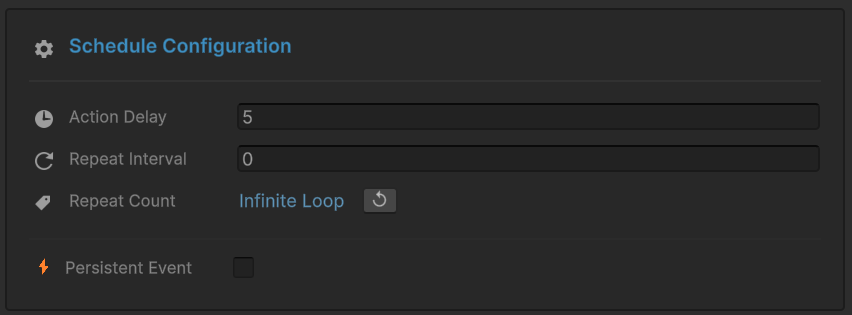

Behavior Settings

Schedule Configuration Section:

⏱️ Action Delay: 5 seconds
- This is the time gap between Raise() and execution
- Configurable per-event in the Editor
- No code changes needed to adjust timing
🔄 Repeat Interval: 0 (disabled)
🔢 Repeat Count: Infinite Loop (not used in this demo)
💾 Persistent Event: Unchecked

Event Action:

Method: DelayedEventReceiver.OnExplode()
Mode: Runtime Only

⚙️ Easy Timing Adjustment

Want to make the bomb countdown faster or slower? Just change the Action Delay value in this window. Try 3 for harder difficulty or 10 for easier!

Sender Setup (DelayedEventRaiser)

Select the DelayedEventRaiser GameObject:

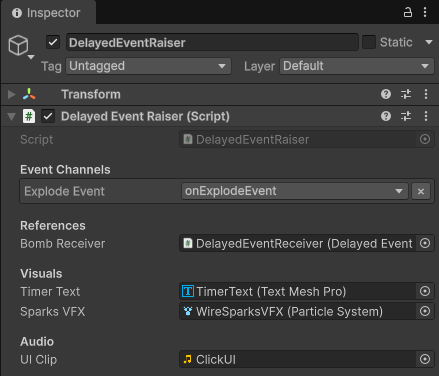

DelayedEventRaiser Inspector

Event Channels:

Explode Event: onExplodeEvent
- Tooltip: "Configuration: Start Delay = 5.0 seconds"

References:

Bomb Receiver: DelayedEventReceiver (for callback coordination)

Visuals:

Timer Text: TimerText (TextMeshPro) - displays countdown
Sparks VFX: WireSparksVFX (Particle System) - wire cutting effect

Receiver Setup (DelayedEventReceiver)

Select the DelayedEventReceiver GameObject:

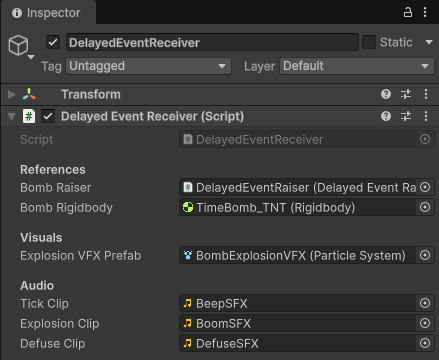

DelayedEventReceiver Inspector

References:

Bomb Raiser: DelayedEventRaiser (for state callback)
Bomb Rigidbody: TimeBomb_TNT (Rigidbody) - for explosion physics

Visuals:

Explosion VFX Prefab: BombExplosionVFX (Particle System)

Audio:

Tick Clip: BeepSFX (tick sound every second)
Explosion Clip: BoomSFX (explosion sound)
Defuse Clip: DefuseSFX (success sound)

Code Breakdown

DelayedEventRaiser.cs (Sender)

using UnityEngine;
using TinyGiants.GES.Runtime;
using System.Collections;
using TMPro;

public class DelayedEventRaiser : MonoBehaviour
{
    [Header("Event Channels")]
    [Tooltip("Configuration: Start Delay = 5.0 seconds.")]
    [GameEventDropdown] public GameEvent explodeEvent;

    [Header("Visuals")]
    [SerializeField] private TextMeshPro timerText;

    private bool _isArmed;
    private float _countDownTime = 5.0f;
    private string _safeWireColor; // Randomized each round

    /// <summary>
    /// Button Action: Arms the bomb and starts the delayed event.
    /// </summary>
    public void ArmBomb()
    {
        if (_isArmed || explodeEvent == null) return;

        _isArmed = true;

        // Randomize the puzzle solution
        _safeWireColor = Random.value > 0.5f ? "Red" : "Green";
        Debug.Log($"[Game Logic] Bomb Armed! The SAFE wire is: " +
                  $"<color={_safeWireColor.ToLower()}>{_safeWireColor}</color>");

        // CRITICAL: Raise the delayed event
        // This does NOT execute immediately!
        // The event enters "Pending State" for 5 seconds
        explodeEvent.Raise();

        // Start cosmetic countdown (visual only)
        StartCoroutine(CountdownRoutine());
    }

    /// <summary>
    /// Button Action: Player attempts to cut the Red wire.
    /// </summary>
    public void CutRedWire() => ProcessCut("Red");

    /// <summary>
    /// Button Action: Player attempts to cut the Green wire.
    /// </summary>
    public void CutGreenWire() => ProcessCut("Green");

    private void ProcessCut(string color)
    {
        if (!_isArmed) return;

        Debug.Log($"[Player] Cutting {color} Wire...");

        // Play wire cutting VFX...

        // CRITICAL DECISION POINT
        if (color == _safeWireColor)
        {
            // THE MAGIC: Cancel the pending event
            // This removes it from the scheduler's queue
            // OnExplode() will NEVER be called
            explodeEvent.Cancel();

            DisarmSuccess();
        }
        else
        {
            // Wrong wire - event remains pending
            Debug.LogWarning("Wrong wire! The clock is still ticking...");
        }
    }

    private void DisarmSuccess()
    {
        _isArmed = false;
        StopAllCoroutines(); // Stop visual countdown

        // Update UI to show success...
        Debug.Log("<color=green>BOMB DEFUSED! Event Cancelled.</color>");
    }

    private IEnumerator CountdownRoutine()
    {
        // This is PURELY COSMETIC
        // The real timer is managed by GameEventManager's scheduler
        // Even if this coroutine stops, the bomb would still explode

        float _currentTimer = _countDownTime;

        while (_currentTimer > 0)
        {
            _currentTimer -= Time.deltaTime;
            if (_currentTimer < 0) _currentTimer = 0;

            // Update visual timer text
            if (timerText)
            {
                timerText.text = _currentTimer.ToString("00.000");

                // Color lerp from orange to red for urgency
                float urgency = 1f - (_currentTimer / _countDownTime);
                timerText.color = Color.Lerp(new Color(1f, 0.5f, 0f),
                                            Color.red, urgency);
            }

            yield return null;
        }
    }
}

Key Points:

🎯 Separation of Concerns - Visual timer (coroutine) vs Logic timer (scheduler)
🎲 Random Selection - _safeWireColor determined each round
🔴 Cancel API - .Cancel() removes pending event from queue
⏱️ Cosmetic Countdown - UI updates independently of event system

DelayedEventReceiver.cs (Listener)

using UnityEngine;
using System.Collections;

public class DelayedEventReceiver : MonoBehaviour
{
    [SerializeField] private Rigidbody bombRigidbody;
    [SerializeField] private ParticleSystem explosionVFXPrefab;

    [Header("Audio")]
    [SerializeField] private AudioClip explosionClip;

    private AudioSource _audioSource;
    private Camera _mainCamera;

    private void Start()
    {
        _mainCamera = Camera.main;
        _audioSource = GetComponent<AudioSource>();
        if (_audioSource == null) _audioSource = gameObject.AddComponent<AudioSource>();
    }

    /// <summary>
    /// [Event Callback - Delayed Execution]
    ///
    /// This method is ONLY called if:
    /// 1. explodeEvent.Raise() was called
    /// 2. 5 seconds elapsed
    /// 3. explodeEvent.Cancel() was NOT called during that time
    ///
    /// If the correct wire is cut, this method never runs.
    /// </summary>
    public void OnExplode()
    {
        Debug.Log("<color=red><b>BOOM! The event executed.</b></color>");

        // Spawn explosion VFX
        if (explosionVFXPrefab != null)
        {
            ParticleSystem vfx = Instantiate(explosionVFXPrefab,
                                            transform.position,
                                            Quaternion.identity);
            vfx.Play();
            Destroy(vfx.gameObject, 3.0f);
        }

        // Enable physics on bomb
        if (bombRigidbody)
        {
            bombRigidbody.isKinematic = false;

            // Apply explosion force (launches bomb upward)
            bombRigidbody.AddExplosionForce(2000f,
                                           transform.position + Vector3.down * 0.5f,
                                           5f);
            bombRigidbody.AddTorque(Random.insideUnitSphere * 100f,
                                   ForceMode.Impulse);
        }

        // Audio + Camera shake
        if (explosionClip) _audioSource.PlayOneShot(explosionClip);
        StartCoroutine(ShakeCamera(0.5f, 0.8f));
    }

    private IEnumerator ShakeCamera(float duration, float magnitude)
    {
        if (_mainCamera == null) yield break;

        Vector3 originalPos = _mainCamera.transform.position;
        float elapsed = 0f;

        while (elapsed < duration)
        {
            float x = Random.Range(-1f, 1f) * magnitude;
            float y = Random.Range(-1f, 1f) * magnitude;
            _mainCamera.transform.position = originalPos + new Vector3(x, y, 0);
            elapsed += Time.deltaTime;
            yield return null;
        }

        _mainCamera.transform.position = originalPos;
    }
}

Key Points:

🎯 Conditional Execution - Only runs if not canceled
💥 Explosion Logic - VFX, physics, audio, camera shake
🎬 Pure Reaction - No knowledge of timers or cancellation
⏱️ Delayed Invocation - Called 5 seconds after Raise() (if not canceled)

Key Takeaways

Concept	Implementation
⏱️ Action Delay	Configure execution delay in Behavior Window (no code)
📋 Pending State	Events wait in scheduler queue between Raise and Execute
🔴 Cancellation API	`.Cancel()` removes event from queue before execution
🎯 Atomic Execution	Canceled events never invoke receiver methods
🎨 Visual vs Logic	Separate cosmetic timers from event system timers

🎓 Design Insight

Delayed events are perfect for:

Timed abilities - Cooldowns, cast times, channeling
Countdown mechanics - Bombs, buffs expiring, reinforcements arriving
Cancelable actions - Interrupt casting, defuse mechanics
Turn-based delays - Wait for animation before next action
Scheduled events - Day/night cycle triggers, periodic spawns

The .Cancel() API is critical for interactive gameplay—letting players interrupt dangerous actions adds tension and player agency!

Game Event Behavior - Complete guide to schedule configuration
Raising and Scheduling - API reference for .Raise() and .Cancel()
Best Practices - Patterns for timed gameplay mechanics

Overview​

Demo Scene​

Scene Composition​

How to Interact​

The Defusal Challenge​

Step 1: Enter Play Mode​

Step 2: Arm the Bomb​

Step 3: Choose Your Fate​

Option A: Do Nothing (Let It Explode)​

Option B: Cut the Wrong Wire​

Option C: Cut the Correct Wire (Defuse)​

Scene Architecture​

The Scheduling System​

Event Definition​

Behavior Configuration with Delay​

Sender Setup (DelayedEventRaiser)​

Receiver Setup (DelayedEventReceiver)​

Code Breakdown​

DelayedEventRaiser.cs (Sender)​

DelayedEventReceiver.cs (Listener)​

Key Takeaways​

Related Documentation​

Overview

Demo Scene

Scene Composition

How to Interact

The Defusal Challenge

Step 1: Enter Play Mode

Step 2: Arm the Bomb

Step 3: Choose Your Fate

Option A: Do Nothing (Let It Explode)

Option B: Cut the Wrong Wire

Option C: Cut the Correct Wire (Defuse)

Scene Architecture

The Scheduling System

Event Definition

Behavior Configuration with Delay

Sender Setup (DelayedEventRaiser)

Receiver Setup (DelayedEventReceiver)

Code Breakdown

DelayedEventRaiser.cs (Sender)

DelayedEventReceiver.cs (Listener)

Key Takeaways

Related Documentation
